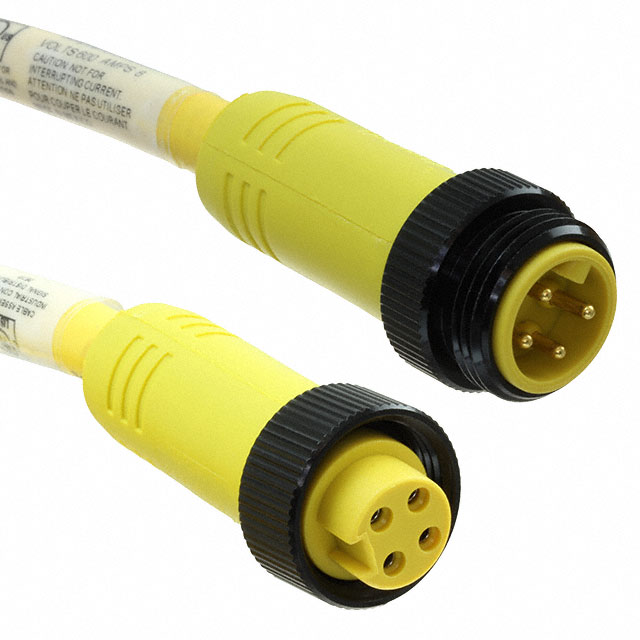

MN47A4AC01M050

Active

Amphenol Sine Systems Corp

CBL 4POS MALE TO FMALE 16.4'

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CBL 4POS MALE TO FMALE 16.4'

Technical Specifications

Parameters and characteristics for this part

Specification	MN47A4AC01M050

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	0.875 in
1st Connector Shell Size - Insert	M22
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	0.875 "
2nd Connector Shell Size - Insert	M22
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Number of Positions Loaded	1st Connector Gender	Color	Usage	1st Connector Mounting Type	2nd Connector Type	Cable Material	1st Connector Shell Size - Insert	1st Connector Shell Size - Insert	Shielding	Ingress Protection	Cable Type	Assembly Configuration	1st Connector Type	1st Connector Number of Positions	1st Connector Orientation [custom]	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Shell Size - Insert	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	Length [x]	Length [x]
Amphenol Sine Systems Corp MN47AC01M100	All	Male Pins	Yellow	Industrial Environments	Free Hanging (In-Line)	Wire Leads	Polyvinyl Chloride (PVC)	0.875 in	M22	Unshielded	IP67 - Dust Tight Waterproof	Round	Standard	Receptacle	4	Keyed
Amphenol Sine Systems Corp MN47A4AC01M050	All	Male Pins	Yellow	Industrial Environments	Free Hanging (In-Line)	Plug	Polyvinyl Chloride (PVC)	0.875 in	M22	Unshielded	IP67 - Dust Tight Waterproof	Round	Standard	Receptacle	4	Keyed	4	Free Hanging (In-Line)	Female Sockets	0.875 "	M22	All
Amphenol Sine Systems Corp MN47AC01M020	All	Male Pins	Yellow	Industrial Environments	Free Hanging (In-Line)	Wire Leads	Polyvinyl Chloride (PVC)	0.875 in	M22	Unshielded	IP67 - Dust Tight Waterproof	Round	Standard	Receptacle	4	Keyed							2 m	6.56 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 84.75

General part information

Circular Cable Assembly Unshielded 16.40' (5.00m)
