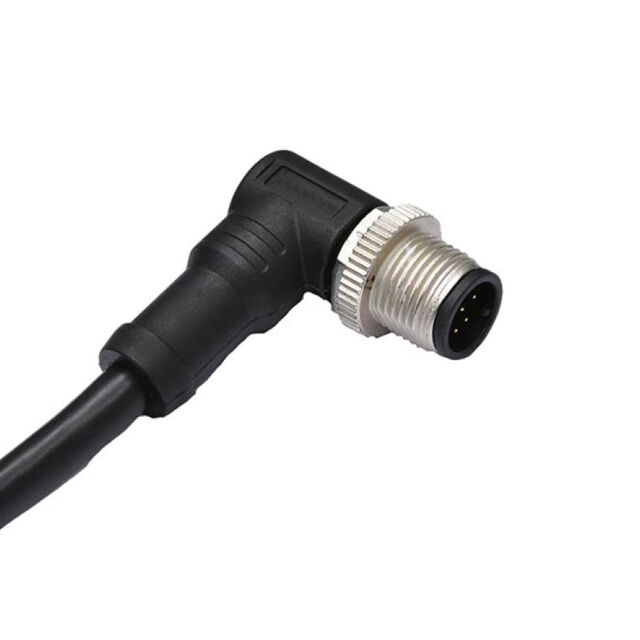

MSDP-04BMMM-SR8D01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, PLASTIC, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, D CODE, PLASTIC, 4A, 04 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	MSDP-04BMMM-SR8D01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Assembly Configuration	1st Connector Number of Positions Loaded	Usage	Shielding	Cable Material	1st Connector Gender	1st Connector Number of Positions	2nd Connector Type	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Mounting Type	Length [x]	Length [x]	Color	Cable Type	Ingress Protection
Amphenol LTW MSDP-04BMMM-SL8D01	Standard	All	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Male Pins	4	Wire Leads	D	M12	Receptacle	Free Hanging (In-Line)	1 m	3.28 ft	Black	Round	IP68 IP69K
Amphenol LTW MSDP-04BMMM-SR8D01	Standard	All	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Male Pins	4	Wire Leads	D	M12	Receptacle Right Angle	Free Hanging (In-Line)	1 m	3.28 ft	Black	Round	IP68 IP69K
Amphenol LTW MSDP-04BMMM-SL8A01	Standard	All	Industrial Environments	Unshielded	Polyvinyl Chloride (PVC)	Male Pins	4	Wire Leads	D	M12	Receptacle	Free Hanging (In-Line)	1 m	3.28 ft	Yellow	Round	IP68 IP69K
Amphenol LTW MSDP-04BMMM-SR8B01	Standard	All	Industrial Environments	Unshielded	Polyurethane (PUR)	Male Pins	4	Wire Leads	D	M12	Receptacle Right Angle	Free Hanging (In-Line)	1 m	3.28 ft	Black	Round	IP68 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
