63SXE56M

Active

Panasonic Industrial Automation Sales

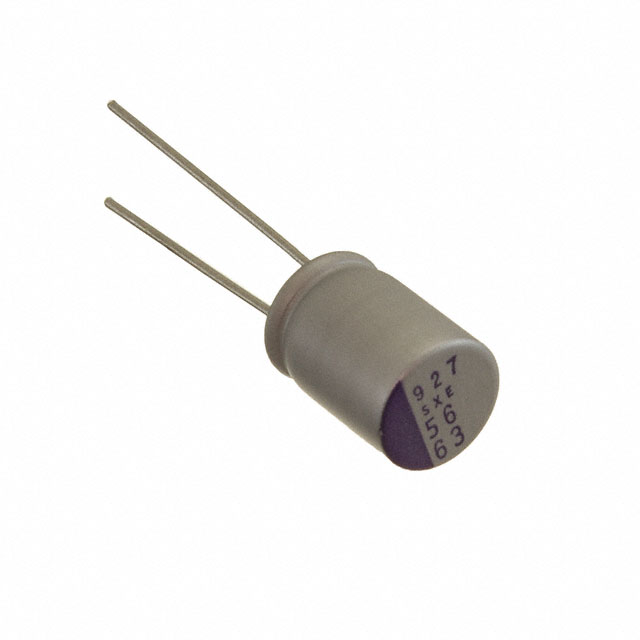

CAP ALUM POLY 56UF 20% 63V TH

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 56UF 20% 63V TH

Technical Specifications

Parameters and characteristics for this part

Specification	63SXE56M

Applications	General Purpose
Capacitance	56 µF
ESR (Equivalent Series Resistance)	25 mOhm
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	2.95 A
Ripple Current @ Low Frequency	147.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	63 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Mounting Type	Capacitance	Applications	Ripple Current @ Low Frequency	Package / Case
Panasonic Industrial Automation Sales 63SXE68M	-55 °C	125 °C	5 mm	0.197 in	10 mm	0.394 in	Polymer	63 V	20 %	13 mm	0.512 "	1000 Hrs	1.03 A	25 mOhm	Through Hole	68 µF	General Purpose	51.5 mA	Radial Can
Panasonic Industrial Automation Sales 63SXE39MX	-55 °C	125 °C	5 mm	0.197 in	10 mm	0.394 in	Polymer	63 V	20 %	8 mm	0.315 in	1000 Hrs	690 mA	25 mOhm	Through Hole	39 µF	General Purpose	34.5 mA	Radial Can
Panasonic Industrial Automation Sales 63SXE100M	-55 °C	125 °C	5 mm	0.197 in	10 mm	0.394 in	Polymer	63 V	20 %	13 mm	0.512 "	1000 Hrs	3.28 A	25 mOhm	Through Hole	100 µF	General Purpose	164 mA	Radial Can
Panasonic Industrial Automation Sales 63SXE56M	-55 °C	125 °C	3.5 mm	0.138 in	8 mm	0.315 "	Polymer	63 V	20 %	12 mm	0.472 "	1000 Hrs	2.95 A	25 mOhm	Through Hole	56 µF	General Purpose	147.5 mA	Radial Can

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 µF 63 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 1000 Hrs @ 125°C
