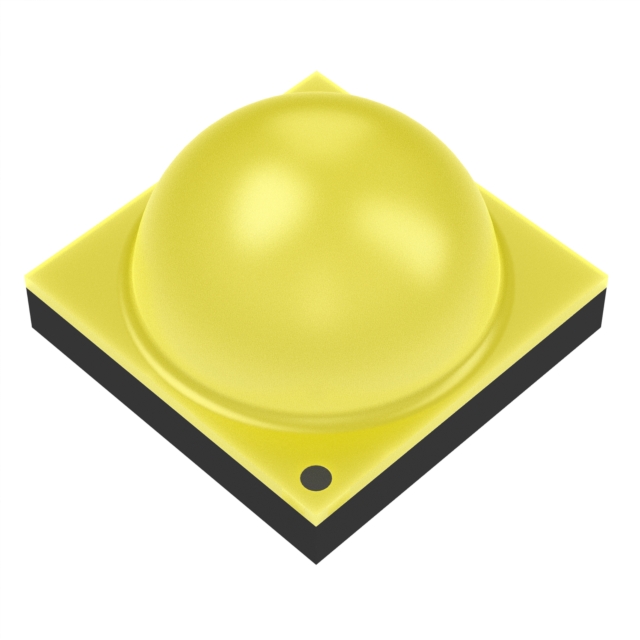

XPGDWT-N1-0000-00VPP

Active

Cree LED

XLAMP XP-G GEN 3 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGDWT-N1-0000-00VPP

Active

Cree LED

XLAMP XP-G GEN 3 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPGDWT-N1-0000-00VPP

Color	White
Current - Max [Max]	2 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Thermal Resistance of Package [custom]	0.7 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.83 V

XPGDWT Series

...

Part	Mounting Type	Current - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	CCT (K)	Flux @ 85°C, Current - Test	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [diameter]	Color	Supplier Device Package	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Thermal Resistance of Package [custom]	Flux @ 85°C, Current - Test
Cree LED XPGDWT-H1-0000-00LDT	Surface Mount	350 mA	178 lm/W	80	7000 K	168 lm	3535 Metric	1414	2.7 V	3 °C/W	Cool White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °
Cree LED XPGDWT-B1-0000-00JE7	Surface Mount	350 mA	159 lm/W	70		152 lm	3535 Metric	1414	2.73 V	3 °C/W	Warm White		2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °	156 lm	148 lm
Cree LED XPGDWT-N1-0000-00VPP	Surface Mount	350 mA					3535 Metric	1414	2.83 V		White		2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °			0.7 °C/W
Cree LED XPGDWT-B1-0000-00JE8	Surface Mount	350 mA	161 lm/W	70	2700 K	152 lm	3535 Metric	1414	2.7 V	3 °C/W	Warm White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °	156 lm	148 lm
Cree LED XPGDWT-BS-0000-00K7E	Surface Mount	350 mA	169 lm/W	70	3000 K	160 lm	3535 Metric	1414	2.7 V	3 °C/W	Warm White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °
Cree LED XPGDWT-U1-0000-00FE2	Surface Mount	350 mA	132 lm/W	90	5700 K		3535 Metric	1414	2.73 V	3 °C/W	Cool White		2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °
Cree LED XPGDWT-01-0000-00MF5	Surface Mount	350 mA	186 lm/W	70	4200 K	176 lm	3535 Metric	1414	2.7 V	3 °C/W	Neutral White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °				172lm ~ 180lm
Cree LED XPGDWT-H1-0000-00LE5	Surface Mount	350 mA	178 lm/W	80	4000 K	168 lm	3535 Metric	1414	2.7 V	3 °C/W	Neutral White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °
Cree LED XPGDWT-B1-0000-00LF7	Surface Mount	350 mA	178 lm/W	70	3200 K	168 lm	3535 Metric	1414	2.7 V	3 °C/W	Warm White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °
Cree LED XPGDWT-B1-0000-00L8E	Surface Mount	350 mA	178 lm/W	70	2700 K	168 lm	3535 Metric	1414	2.7 V	3 °C/W	Warm White	1414	2 A	3.45 mm	0.136 in	0.136 in	3.45 mm	2.39 mm	0.094 "	125 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.74
		10	$ 1.65
		50	$ 1.61
		100	$ 1.48
		200	$ 1.34
		500	$ 1.26
	Digi-Reel®	1	$ 1.74
		10	$ 1.65
		50	$ 1.61
		100	$ 1.48
		200	$ 1.34
		500	$ 1.26
	Tape & Reel (TR)	1000	$ 1.16
Newark	Each	1000	$ 1.16
		25000	$ 1.09
		50000	$ 1.02

Description

General part information

XPGDWT Series

LED Lighting Xlamp® XP-G3 Photophyll™ White 2.83V 350mA 125° 1414 (3535 Metric)
