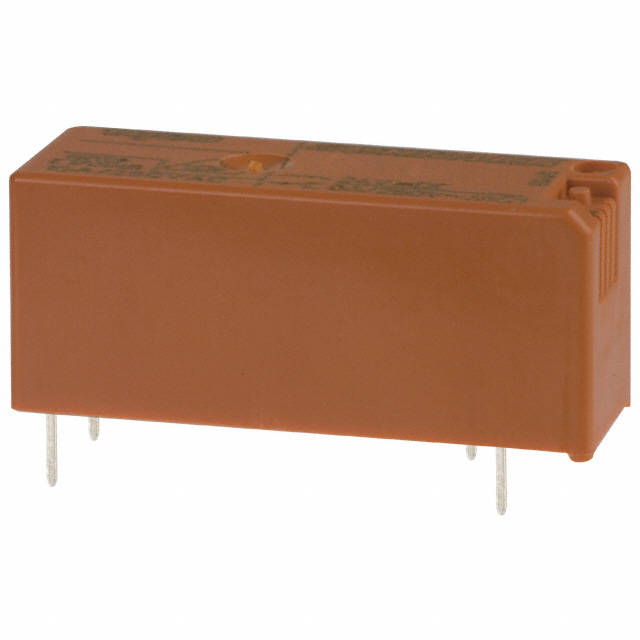

RY532012
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 8A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RY532012
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 8A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RY532012 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 19.2 mA |
| Coil Resistance | 627 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.64 | |
| 20 | $ 6.23 | |||
| 40 | $ 5.26 | |||
| 100 | $ 4.98 | |||
| 260 | $ 4.43 | |||
| 500 | $ 4.15 | |||
| 1000 | $ 3.87 | |||
Description
General part information
RY5320 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
