AS21P2TLRQ

Obsolete

STMicroelectronics

IC SWITCH SPDT X 2 500MOHM 10QFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC SWITCH SPDT X 2 500MOHM 10QFN

Technical Specifications

Parameters and characteristics for this part

Specification	AS21P2TLRQ

-3db Bandwidth	55 MHz
Channel-to-Channel Matching (ΔRon)	100 mOhm
Charge Injection	49 pC
Crosstalk	-72 dB
Current - Leakage (IS(off)) (Max)	20 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max) [Max]	500 mOhm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

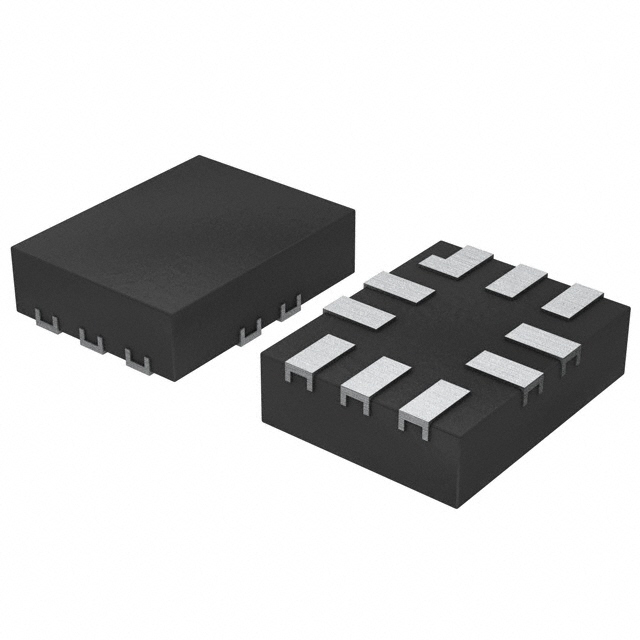

Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	65 ns
Switch Time (Ton, Toff) (Max) [custom]	40 ns
Voltage - Supply, Single (V+) [Max]	4.3 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon)	-3db Bandwidth	Switch Circuit	Mounting Type	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Package / Case	Supplier Device Package	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]
STMicroelectronics AS21P2TLRQ	500 mOhm	100 mOhm	55 MHz	SPDT	Surface Mount	2:1	20 nA	10-UFQFN	10-QFN (1.8x1.4)	2	85 °C	-40 °C	49 pC	65 ns	40 ns	-72 dB	4.3 V	1.65 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Circuit IC Switch 2:1 500mOhm 10-QFN (1.8x1.4)

Technical documentation and resources

No documents available
