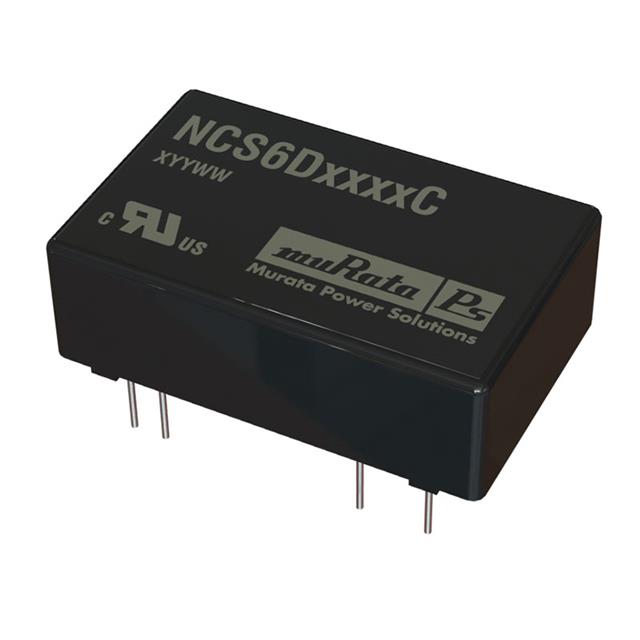

NCS6D4812C

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 6W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-12V 6W

Part	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type	Voltage - Isolation	Features	Voltage - Input (Max) [Max]	Applications	Efficiency	Voltage - Output 2	Voltage - Input (Min) [Min]	Voltage - Output 1	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]
Murata Power Solutions Inc. NCS6D4812C	24-DIP Module (600 mil, 8 Leads)	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	Isolated Module	Through Hole	1.5 kV	UVLO	75 V	ITE (Commercial)	84 %	-12 V	18 V	12 V	2	250 mA	250 mA	85 °C	-40 °C	6 W
Murata Power Solutions Inc. NCS6D1205C	24-DIP Module (600 mil, 8 Leads)	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	Isolated Module	Through Hole	1.5 kV	UVLO	36 V	ITE (Commercial)		-5 V	9 V	5 V	2			85 °C	-40 °C	6 W	600 mA
Murata Power Solutions Inc. NCS6D4805C	24-DIP Module (600 mil, 8 Leads)	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	Isolated Module	Through Hole	1.5 kV	UVLO	75 V	ITE (Commercial)	80 %	-5 V	18 V	5 V	2			85 °C	-40 °C	6 W	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 75V Input
