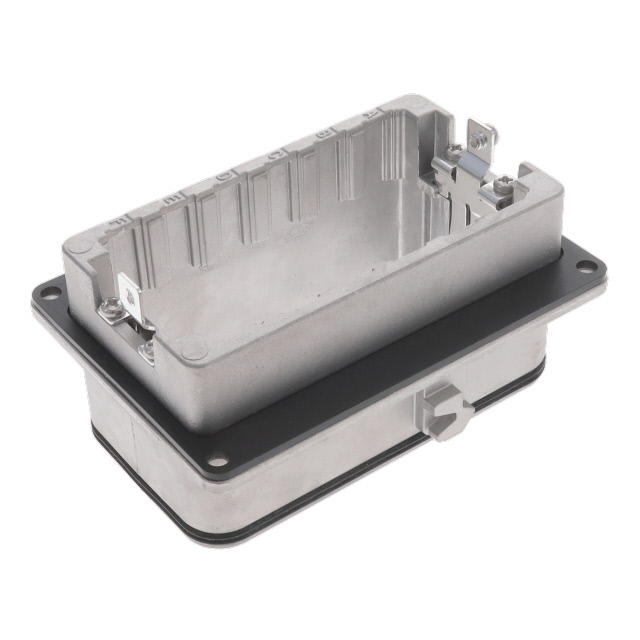

KN01AL-SHL-A
ActiveJAE Electronics
CONN RECEPTACLE OUTER SHELL (LAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN01AL-SHL-A |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Silver |
| Housing Material | Aluminum Alloy |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lock Location | Locking Clip (1) on Hood |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Size | L |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.75 | |
| 20 | $ 16.89 | |||
Description
General part information
KN01AL Series
Base - Panel Mount Connector Bottom Entry L IP67 - Dust Tight, Waterproof
