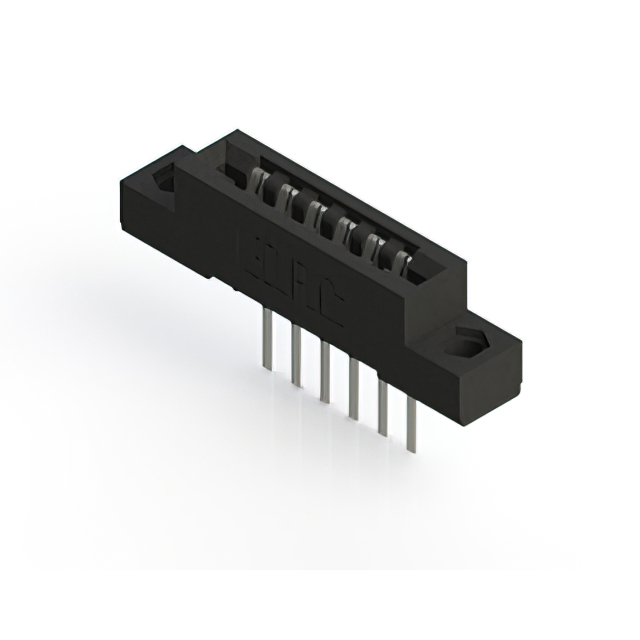

357-006-445-104

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-006-445-104

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-006-445-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	6
Number of Positions/Bay/Row [custom]	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

357-006 Series

...

Part	Color	Contact Material	Gender	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Finish	Number of Rows	Material - Insulation	Termination Rows	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 357-006-553-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-521-107	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	Flush Mount M3 Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-445-104	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	Flush Mount Top Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge	3.96 mm	0.156 in
EDAC Inc. 357-006-541-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Wire Wrap	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-431-178	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Solder	0.156 in	3.96 mm			6	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge			Card Guides
EDAC Inc. 357-006-554-108	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder Eyelet(s)	0.156 in	3.96 mm	10 Áin	0.25 Ám	12	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Surface Mount	Gold	2	Polyester Thermoplastic	1	Non Specified - Dual Edge
EDAC Inc. 357-006-421-112	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Dual	Solder	0.156 in	3.96 mm			12	Flush Mount Side Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	2	Polyester Thermoplastic	1	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 357-006-527-112	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Solder	0.156 in	3.96 mm	10 Áin	0.25 Ám	6	Flush Mount Side Opening Unthreaded	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	1	Polyester Thermoplastic	1	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 357-006-447-178	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	4-40 Flush Mount Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge			Card Guides
EDAC Inc. 357-006-447-107	Black	Copper Alloy	Female	Semi Bellows	-40 °C	105 ░C	Single	Wire Wrap	0.156 in	3.96 mm			6	Flush Mount M3 Threaded Insert Top Opening	6	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	1	Polyester Thermoplastic	1	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 6.91
Newark	Each	25	$ 7.55
		50	$ 7.38
		100	$ 7.02
		250	$ 6.85
		500	$ 6.60

Description

General part information

357-006 Series

6 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
