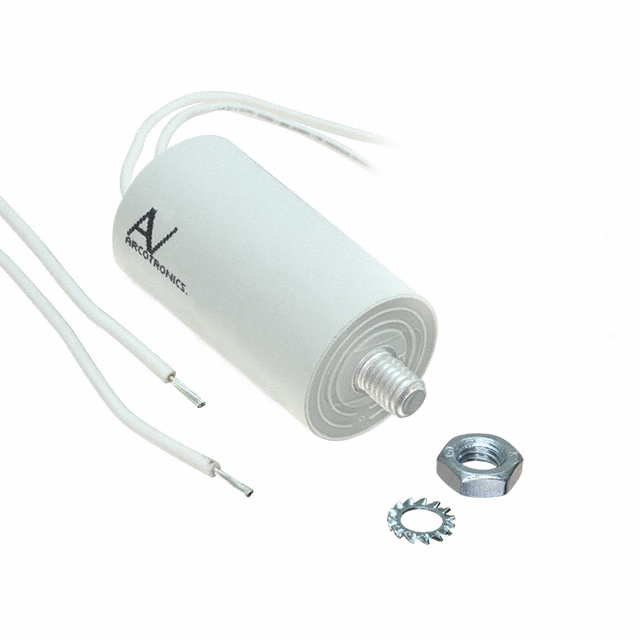

C284ACA4300AL0J

Active

CAP FILM 3UF 5% 470VAC RADIAL

Active

CAP FILM 3UF 5% 470VAC RADIAL

Description

General part information

3 µF Film Capacitor 470V Polypropylene (PP) Radial, Can

Parameters and characteristics for this part

Part	Termination	Capacitance	Size / Dimension Diameter	Voltage Rating - AC	Dielectric Material	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Tolerance	Height - Seated (Max)	Applications
KEMET C284ACA4500AL0J	Wire Leads	5 µF	1.181 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
KEMET C284ACR4300AL0J	Wire Leads	3 µF	0.984 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
KEMET C284ACA4400AL0J	Wire Leads	4 µF	1.181 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
KEMET C284ACA4300AL0J	Wire Leads	3 µF	0.984 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
KEMET C284ACA4200AL0J	Wire Leads	2 µF	0.984 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
KEMET C284ACA4250AL0J	Wire Leads	2.5 µF	0.984 in	470 V	Polypropylene (PP)	Chassis Mount	85 °C	-25 °C	Can Radial	5 %	2.244 in	Motor Run
