ACSA04-41CGKWA-F01

Active

Kingbright

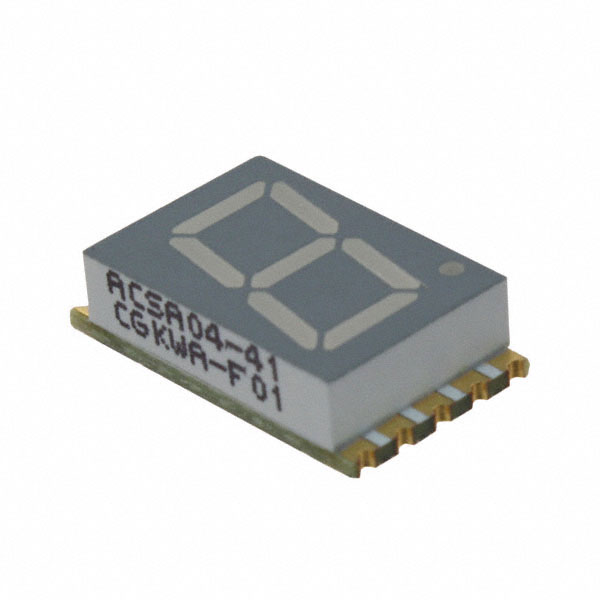

DISPLAY 7SEG 0.4" SGL GRN 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACSA04-41CGKWA-F01

Active

Kingbright

DISPLAY 7SEG 0.4" SGL GRN 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACSA04-41CGKWA-F01

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.512 in
Size / Dimension [x]	13 mm
Size / Dimension [y]	9.1 mm
Size / Dimension [y]	0.358 in
Size / Dimension [z]	0.148 in
Size / Dimension [z]	3.75 mm
Voltage - Forward (Vf) (Typ)	2.1 V

ACSA04 Series

Part	Display Type	Power Dissipation (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Common Pin	Millicandela Rating	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size [custom]	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Current - Test
Kingbright ACSA04-41SYKWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	35 mcd	1	10.16 mm	0.4 in	Yellow	590 nm	2 V	20 mA
Kingbright ACSA04-41SGWA-F01	7-Segment	62.5 mW	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	4.7 mcd	1	10.16 mm	0.4 in	Green	565 nm	2.2 V	20 mA
Kingbright ACSA04-41SURKWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	27 mcd	1	10.16 mm	0.4 in	Red	650 nm	1.95 V	20 mA
Kingbright ACSA04-41CGKWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	11 mcd	1	10.16 mm	0.4 in	Green		2.1 V	20 mA
Kingbright ACSA04-41YWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.591 in	15 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	3 mcd	1	10.16 mm	0.4 in	Yellow	590 nm	2.5 V	20 mA
Kingbright ACSA04-41SRWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	14 mcd	1	10.16 mm	0.4 in	Red	660 nm	1.85 V	20 mA
Kingbright ACSA04-41SEKWA-F01	7-Segment	75 mw	10-SMD No Lead	0.148 in	0.512 in	13 mm	3.75 mm	9.1 mm	0.358 in	Common Anode	60 mcd	1	10.16 mm	0.4 in		610 nm	2.1 V	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.21
		10	$ 1.57
		100	$ 1.31
	Digi-Reel®	1	$ 2.21
		10	$ 1.57
		100	$ 1.31
	Tape & Reel (TR)	400	$ 1.31

Description

General part information

ACSA04 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.1V 20mA 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) 10-SMD, No Lead
