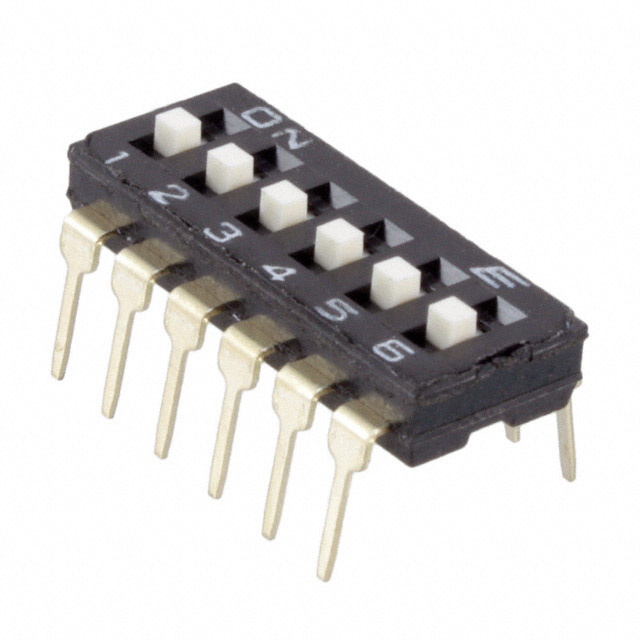

KAE06LAGT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Contact Material	Contact Finish	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Current Rating (Amps)	Termination Style	Height Above Board	Height Above Board	Voltage Rating	Mounting Type	Circuit	Actuator Level	Length	Length	Actuator Type	Features
E-Switch KAE06LAGT	85 °C	-20 C	2000 Steps	Copper	Gold	6	0.1 in	Full	2.54 mm	2000 Cycles	25 mA	PC Pin	0.169 in	4.3 mm	24 VDC	Through Hole	SPST	Raised	0.641 in	16.28 mm	Slide (Standard)
E-Switch KAE06TAGT	85 °C	-20 C	2000 Steps	Copper	Gold	6	0.1 in	Full	2.54 mm	2000 Cycles	25 mA	PC Pin	0.142 in	3.6 mm	24 VDC	Through Hole	SPST	Flush Recessed	0.641 in	16.28 mm	Slide (Standard)	Tape Seal
E-Switch KAE06LGGT	85 °C	-20 C	2000 Steps	Copper	Gold	6	0.1 in	Full	2.54 mm	2000 Cycles	25 mA	Gull Wing	0.175 in	4.45 mm	24 VDC	Surface Mount	SPST	Raised	0.641 in	16.28 mm	Slide (Standard)
E-Switch KAE06SGGR	85 °C	-20 C	2000 Steps	Copper	Gold	6	0.1 in	Full	2.54 mm	2000 Cycles	25 mA	Gull Wing	0.148 in	3.75 mm	24 VDC	Surface Mount	SPST	Flush Recessed	0.641 in	16.28 mm	Slide (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1015	$ 1.04

General part information

Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
