Description
General part information

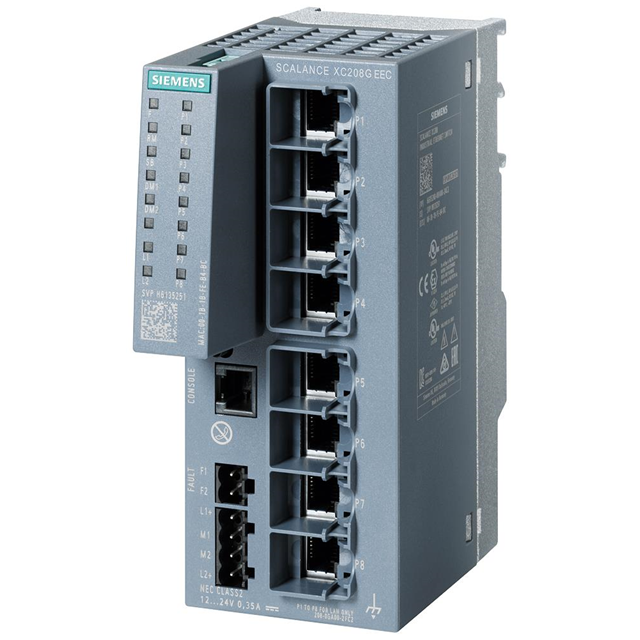

6GK52080 Series
Network Switch - Managed 8 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK52080GA002FC2 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ11, RJ45 |
| Copper Ports | 8 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP20 |
| Mounting Type | Wall Mount, DIN Rail |
| Number of Ports | 8 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 31.2 V |
| Voltage - Input (Minimum) | 9.6 V |
