829559-2

Obsolete

TE Connectivity AMP Connectors

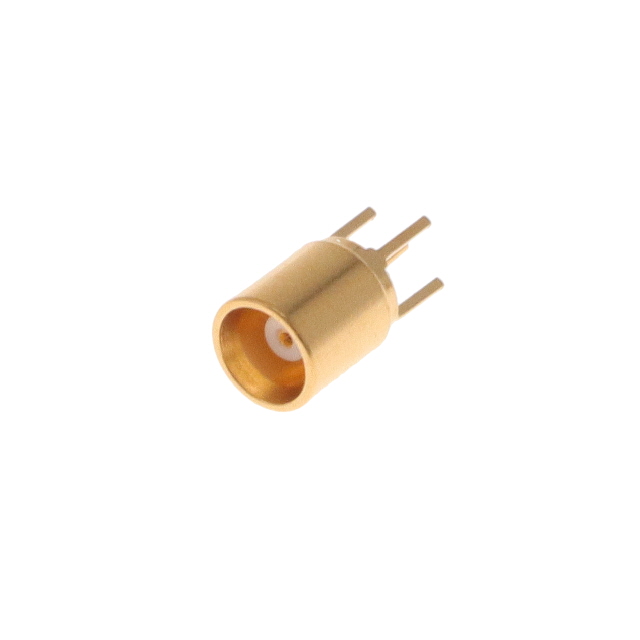

CONN MCX JACK STR 50 OHM PCB

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN MCX JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	829559-2

Body Finish	Gold
Body Material	Copper Alloy
Center Contact Material	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

CONN MCX JACK STR 50 OHM PCB

Part	Voltage Rating	Impedance	Mating Cycles	Body Material	Connector Type	Center Contact Material	Connector Style	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Termination	Fastening Type	Center Contact Plating	Insertion Loss	Frequency - Max [Max]	Shield Termination	Body Finish	Number of Ports
TE Connectivity AMP Connectors 829559-2	335 V	50 Ohms	500	Copper Alloy	Female Socket, Jack	Beryllium Copper, Phosphor Bronze	MCX	Through Hole	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Solder	Snap-On	Gold	0.1 dB	6000 MHz	Solder	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
