BTS3125EJDEMOBOARDTOBO1

Active

Infineon Technologies

DEMO BOARD, LOW SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOperating Instructions EN

BTS3125EJDEMOBOARDTOBO1

Active

Infineon Technologies

DEMO BOARD, LOW SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsOperating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTS3125EJDEMOBOARDTOBO1

Contents	Board(s)
Function	Automotive
Supplied Contents	Board(s)

BTS3125 Series

Part	Supplied Contents	Contents	Function	Input Type	Fault Protection	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Output Type	Number of Outputs	Mounting Type	Features	Rds On (Typ)	Voltage - Load [Max]	Interface	Output Configuration	Supplier Device Package	Switch Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies BTS3125EJDEMOBOARDTOBO1	Board(s)	Board(s)	Automotive
Infineon Technologies BTS3125TFATMA1				Non-Inverting	Current Limiting (Fixed) Over Temperature Over Voltage	1:1	2 A	N-Channel	1	Surface Mount	Auto Restart	108 mOhm	31 V	On/Off	Low Side	PG-TO252-3-313	General Purpose	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	-40 °C
Infineon Technologies BTS3125TFDEMOBOARDTOBO1	Board(s)	Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.41
Newark	Each	1	$ 33.98

Description

General part information

BTS3125 Series

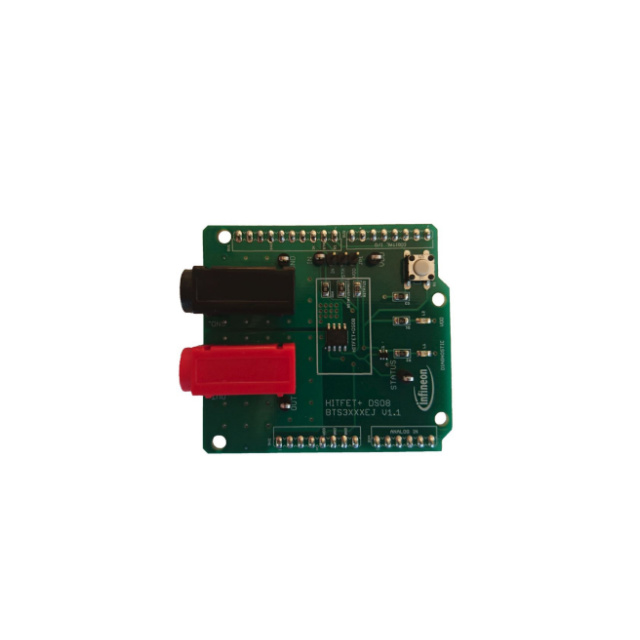

The BTS3xxxEJ series Demoboard is a small PCB where a sample of the BTS3xxxEJ family is already mounted. A pair of LEDs show the activation of the STATUS signal and if the surrounding circuit is supplied. The Demoboard can be use as single stand or also pin compatible with Infineon XMC1100 Boot Kit and Arduino Uno.

Documents

Technical documentation and resources

Operating Instructions EN

Datasheet
