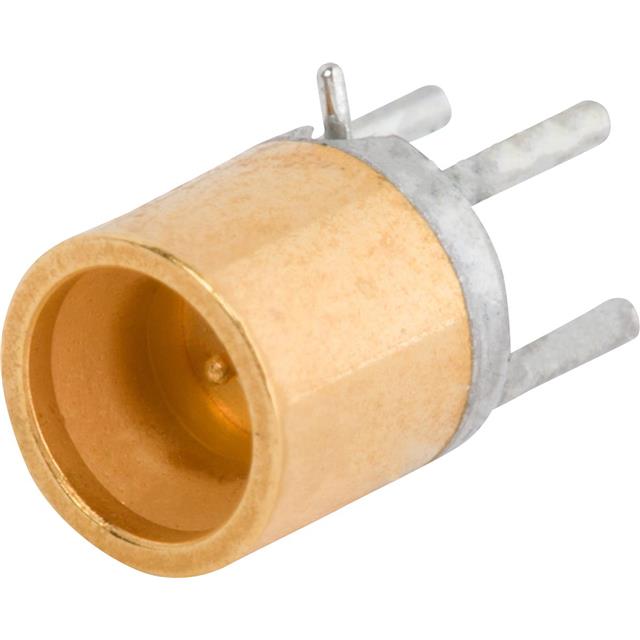

3211-40093

Active

Amphenol SV Microwave

SMPM MALE PCB THRU-HOLE CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoard to Board Brochure

3211-40093

Active

Amphenol SV Microwave

SMPM MALE PCB THRU-HOLE CONNECTO

Deep-Dive with AI

DocumentsBoard to Board Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3211-40093

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyamide-Imide (PAI)
Fastening Type	Snap-On
Features	Smooth Bore, Pre-Tinned (J-STD-001)
Frequency - Max [Max]	25 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

3211-40 Series

Part	Contact Termination	Mating Cycles	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Housing Color	Center Contact Material	Dielectric Material	Number of Ports	Body Finish	Body Material	Impedance	Mounting Type	Connector Type	Features	Frequency - Max [Max]	Shield Termination	Fastening Type	Cable Group	Cable Group
Amphenol SV Microwave 3211-40170	Solder	500	Gold	-65 ░C	165 °C	SMPM	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Gold	Stainless Steel	50 Ohms	Board Edge End Launch	Male Pin Plug	Pre-Tinned (J-STD-001) Smooth Bore	40 GHz	Solder
Amphenol SV Microwave 3211-40141	Solder		Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Gold	Beryllium Copper	50 Ohms	Through Hole	Male Pin Plug	Full Detent	40 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40107	Solder		Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polyamide-Imide (PAI)	1	Gold	Beryllium Copper	50 Ohms	Surface Mount	Male Pin Plug	Full Detent Pre-Tinned	25 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40139	Solder		Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polyamide-Imide (PAI)	1	Gold	Beryllium Copper	50 Ohms	Surface Mount Through Hole	Male Pin Plug	Full Detent	25 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40004	Solder		Gold	-55 °C	125 °C	SMPM	Silver	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1		Stainless Steel	50 Ohms	Panel Mount Snap-In	Male Pin Plug	Full Detent	40 GHz	Solder	Snap-On	0.085 in	RG-405
Amphenol SV Microwave 3211-40093	Solder	500	Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polyamide-Imide (PAI)	1	Gold	Beryllium Copper	50 Ohms	Surface Mount Through Hole	Male Pin Plug	Pre-Tinned (J-STD-001) Smooth Bore	25 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40003			Gold	-55 °C	125 °C	SMPM	Silver	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1		Stainless Steel	50 Ohms	Free Hanging (In-Line)	Male Pin Plug	Smooth Bore	40 GHz		Snap-On	0.047 in	Flexible
Amphenol SV Microwave 3211-40140	Solder	500	Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Gold	Beryllium Copper	50 Ohms	Through Hole	Male Pin Plug	Smooth Bore	40 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40142	Solder	500	Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	1	Gold	Beryllium Copper	50 Ohms	Through Hole	Male Pin Plug	Pre-Tinned (J-STD-001) Smooth Bore	40 GHz	Solder	Snap-On
Amphenol SV Microwave 3211-40138	Solder	500	Gold	-55 °C	125 °C	SMPM	Gold	Beryllium Copper	Polyamide-Imide (PAI)	1	Gold	Beryllium Copper	50 Ohms	Surface Mount Through Hole	Male Pin Plug	Smooth Bore	25 GHz	Solder	Snap-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 59.63
		10	$ 54.72
		25	$ 52.62
		50	$ 50.86
		100	$ 48.06

Description

General part information

3211-40 Series

SMPM Connector Plug, Male Pin 50 Ohms Surface Mount, Through Hole Solder

Documents

Technical documentation and resources

Board to Board Brochure

Datasheet
