2-928343-5
ActiveTE Connectivity AMP Connectors

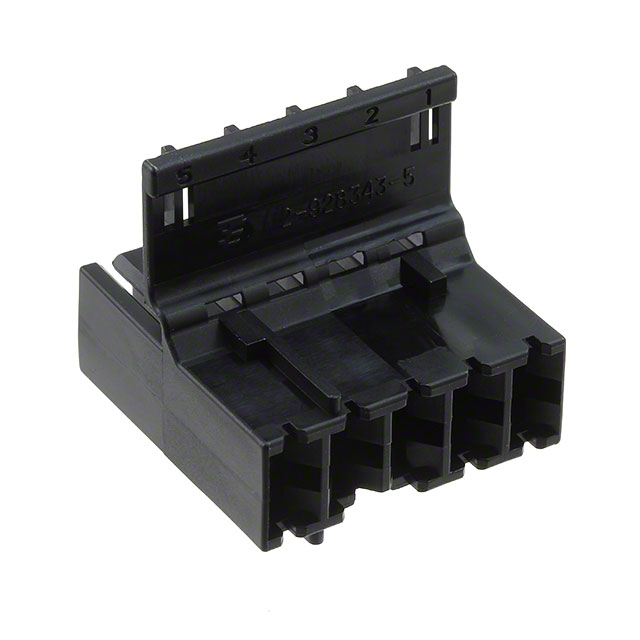

CONN RCPT HSG 5POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-928343-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-928343-5 | 928343 Series |
|---|---|---|
| Color | Black | Gray, Black, Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket, Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 12 |
| Number of Rows | 1 | 1 |
| Operating Temperature | - | 105 - 110 ░C |
| Operating Temperature | - | -55 - -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
928343 Series
CONN RCPT HSG 3POS 5.00MM
| Part | Mounting Type | Number of Rows | Color | Contact Termination | Note | Connector Type | Insulation Material | Pitch [x] | Pitch [x] | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-928343-3 | Free Hanging (In-Line) | 1 | Gray | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 105 ░C | -55 °C | |
TE Connectivity AMP Connectors 2-928343-6 | Free Hanging (In-Line) | 1 | Black | Crimp | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Male Pin | 6 | |||
TE Connectivity AMP Connectors 2-928343-5 | Free Hanging (In-Line) | 1 | Black | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | |||
TE Connectivity AMP Connectors 928343-6 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 110 °C | -40 °C | 6 |
TE Connectivity AMP Connectors 2-928343-8 | Free Hanging (In-Line) | 1 | Black | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 8 | ||
TE Connectivity AMP Connectors 928343-2 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 110 °C | -40 °C | 2 |
TE Connectivity AMP Connectors 1-928343-2 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 105 ░C | -55 °C | 12 |
TE Connectivity AMP Connectors 1-928343-1 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 105 ░C | -55 °C | 11 |
TE Connectivity AMP Connectors 928343-8 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 110 °C | -40 °C | 8 |
TE Connectivity AMP Connectors 928343-5 | Free Hanging (In-Line) | 1 | Natural | Crimp | Contacts Not Included | Receptacle | Polyamide (PA66), Nylon 6/6 | 5 mm | 0.197 in | Female Socket | 110 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.65 | |
Description
General part information
928343 Series
5 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
