M80-7075105

Active

Harwin Inc.

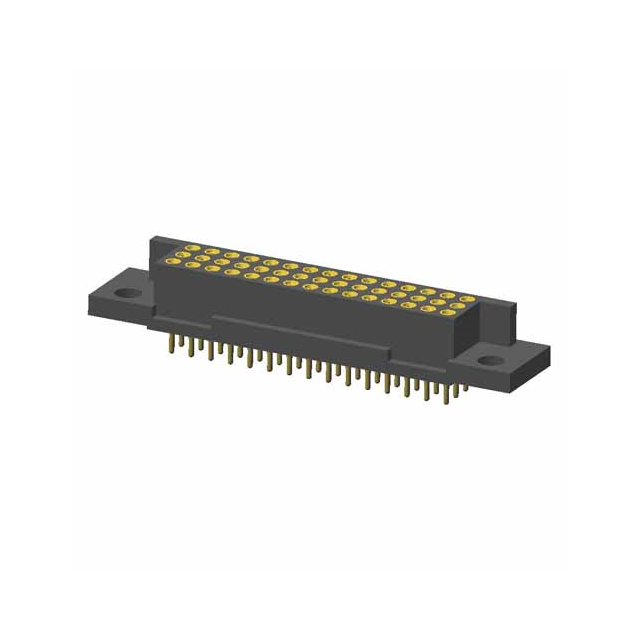

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 51 CONTACTS, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 51 CONTACTS, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7075105

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange
Insulation Color	Black
Insulation Height	6.28 mm
Insulation Height	0.247 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	51
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions Loaded	Number of Rows	Contact Type	Number of Positions	Contact Finish - Mating	Features	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Style	Insulation Color	Mounting Type	Contact Material
Harwin Inc. M80-7075105	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	51	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper
Harwin Inc. M80-7072705	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	27	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper
Harwin Inc. M80-7076305	UL94 V-0	12 µin	0.3 µm	0.3 µm	12 µin	Solder	All	3	Female Socket	63	Gold	Mating Flange	0.079 in	2 mm	Circular	0.079 in	2 mm	6.28 mm	0.247 in	Gold	0.118 in	3 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	-55 °C	125 °C	Receptacle	Board to Board Cable	Black	Through Hole	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	150	$ 30.19
Newark	Each	1	$ 32.98

General part information

51 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
