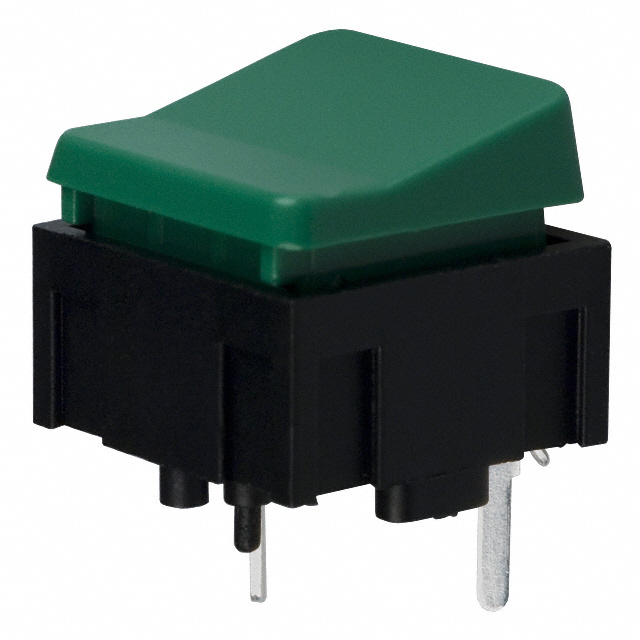

320.22E11GRN

Obsolete

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	320.22E11GRN

Actuator Height off PCB, Vertical [z]	12.6 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.025 A, 50 VDC
Features	Green Cap
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	135 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	12.4 mm
Outline [y]	12.4 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.6 mm
Termination Style	PC Pin

Part	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Switch Travel [custom]	Switch Function	Outline [x]	Outline [y]	Circuit	Termination Style	Actuator Type	Illumination	Mounting Type	Mechanical Life	Contact Rating @ Voltage	Operating Force	Actuator Orientation	Features
E-Switch 320.22U11RED	12.6 mm	70 °C	-25 °C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Red Cap
E-Switch 320.22E11BLU	12.6 mm	70 °C	-20 C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Blue Cap
E-Switch 320.22E11GRN	12.6 mm	70 °C	-20 C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Green Cap
E-Switch 320.22E11RED	12.6 mm	70 °C	-20 C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Red Cap
E-Switch 320.22E11BLKENTER	12.6 mm	70 °C	-20 C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Black Cap
E-Switch 320.22E11ORG	12.6 mm	70 °C	-20 C	Polycarbonate (PC)	0.6 mm	Off-Mom	12.4 mm	12.4 mm	SPST-NO	PC Pin	Square Button	Non-Illuminated	Through Hole	1000000 Cycles	0.025 A 50 VDC	135 gf	Top Actuated	Orange Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
