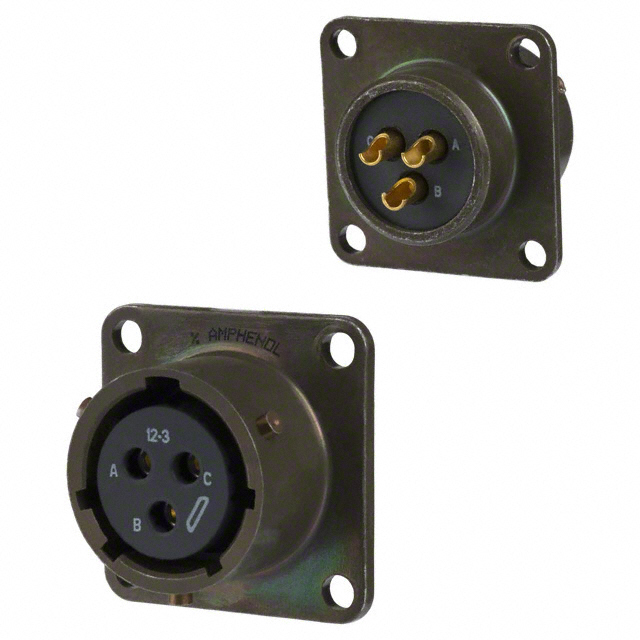

MS3112E-12-3S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3112E-12-3S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3112E-12-3S | MS3112E12 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | - | 8 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | X, W, Y, N, Z |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-3 | 12-8, 12-3 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.27 | |
| 10 | $ 18.23 | |||
| 25 | $ 16.68 | |||
| 50 | $ 16.59 | |||
| 100 | $ 15.61 | |||
| 250 | $ 14.80 | |||
| 500 | $ 14.44 | |||
MS3112E12 Series
CONN RCPT MALE 8P GOLD SLDR CUP
| Part | Primary Material | Shell Size - Insert | Applications | Shell Finish | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Orientation | Qualification | Contact Finish - Mating | Contact Material | Mounting Feature | Shell Material | Color | Ingress Protection | Grade | Fastening Type | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3112E12-8PX | Metal | 12-8 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Male Pins, Receptacle | X | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 8 |
Amphenol Industrial Operations MS3112E12-8PW | Metal | 12-8 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Male Pins, Receptacle | W | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 8 |
Amphenol Industrial Operations MS3112E12-3PY | Metal | 12-3 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Male Pins, Receptacle | Y | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | |
Amphenol Industrial Operations MS3112E-12-3S | Metal | 12-3 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Receptacle, Female Sockets | N | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | |
Amphenol Industrial Operations MS3112E12-10SW | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Receptacle, Female Sockets | W | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 10 | |
Amphenol Industrial Operations MS3112E12-10S | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Receptacle, Female Sockets | N | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 10 | |
Amphenol Industrial Operations MS3112E12-8P | Metal | 12-8 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Male Pins, Receptacle | N | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 8 |
Amphenol Industrial Operations MS3112E12-10P | ||||||||||||||||||||
Amphenol Industrial Operations MS3112E12-10SZ | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Receptacle, Female Sockets | Z | MIL-DTL-26482 Series I | Gold | Copper Alloy | Flange | Aluminum | Olive Drab | Environment Resistant | Military | Bayonet Lock | Unshielded | 10 |
Description
General part information
MS3112E12 Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
