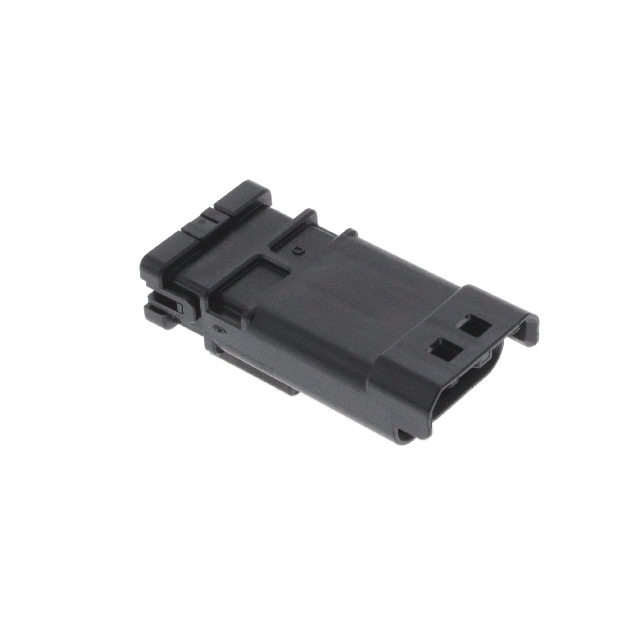

MX80B04PZ1A

Active

JAE Electronics

CONN PLUG HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX80B04PZ1A

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Pin
Fastening Type	Latch Holder
Features	Waterproof (Mated, IP67)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Note	Contact Type	Contact Termination	Features	Mounting Type	Fastening Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Material	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]
JAE Electronics MX80B04PZ1A	Contacts Not Included	Pin	Crimp	Waterproof (Mated IP67)	Free Hanging (In-Line)	Latch Holder	Black	125 °C	-40 °C	Plug	Polybutylene Terephthalate (PBT) Glass Filled	1	4	2.54 mm	0.1 in
JAE Electronics MX80B02PZ1A	Contacts Not Included	Pin	Crimp	Waterproof (Mated IP67)	Free Hanging (In-Line)	Latch Holder	Black	125 °C	-40 °C	Plug	Polybutylene Terephthalate (PBT) Glass Filled	1	2	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
