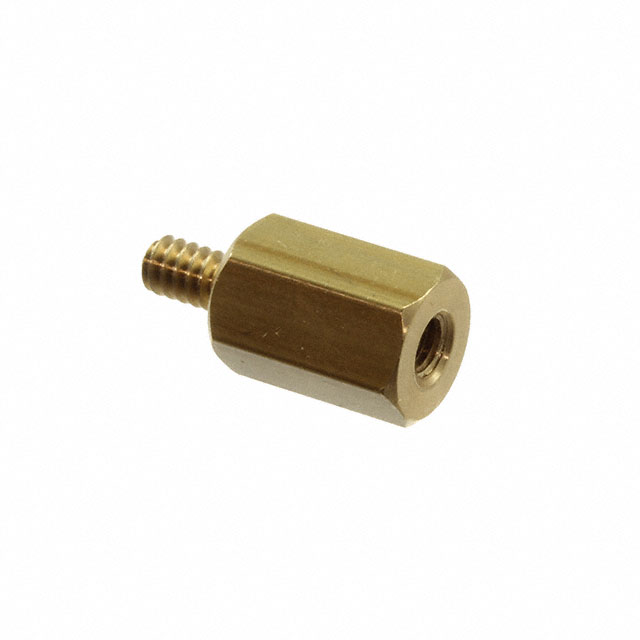

4532-440-B
ActiveRAF Electronic Hardware
1/4 HEX X 3/8 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
Documents4530-4570 Cut Sheet
4532-440-B
ActiveRAF Electronic Hardware
1/4 HEX X 3/8 LENGTH
Deep-Dive with AI
Documents4530-4570 Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4532-440-B |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Diameter - Outside | 6.35 mm |
| Diameter - Outside | 0.25 in |
| Diameter - Outside [custom] | 0.25 in |
| Gender | Male, Female |
| Length - Overall | 0.563 in |
| Length - Overall | 14.29 mm |
| Material | Brass |
| Screw, Thread Size | #4-40 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 5 | $ 0.72 | |||
| 10 | $ 0.67 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
Description
General part information
4532-440 Series
Hex Standoff Threaded #4-40 Brass 0.375" (9.53mm) 3/8"
