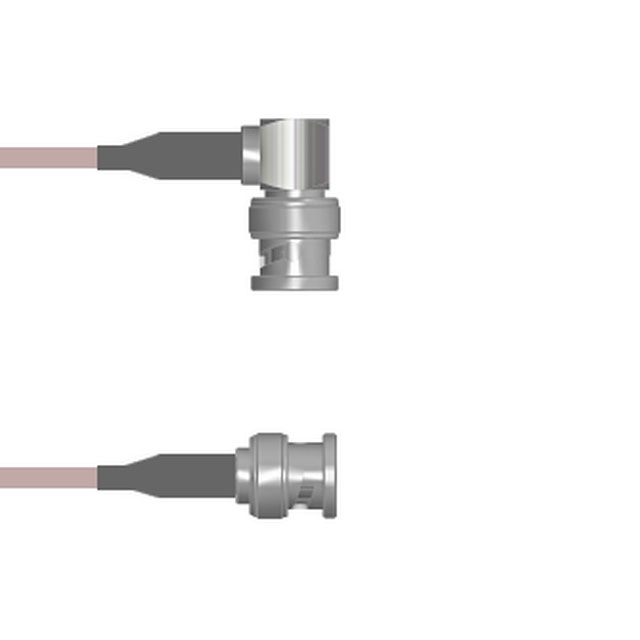

Q-0F00M000H0.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO BNC 19.6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F00M000H0.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO BNC 19.6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F00M000H0.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0F00M0 Series

Part	1st Contact Gender	2nd Contact Gender	1st Connector	Cable Impedance	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	Overall Impedance	Style	2nd Connector Mounting Type	Features	Connector Impedance	Color	2nd Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0F00M000H108i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	2.7 m	9 ft	108 in
Amphenol Custom Cable Q-0F00M000H072i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	1.8 m	6 ft	72 in
Amphenol Custom Cable Q-0F00M000H084i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-0F00M000H018i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F00M000H048i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-0F00M000H0.5M	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	50 cm		19.69 "
Amphenol Custom Cable Q-0F00M000H006i	Male	Male	BNC Plug Right Angle	50 Ohms	4 GHz	Free Hanging (In-Line)	RG-142	50 Ohms	BNC to BNC	Free Hanging (In-Line)	Shielded	50 Ohms	Copper	BNC Plug	152.4 mm		6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.84
		25	$ 78.27
		50	$ 76.69
		100	$ 75.12
		250	$ 73.55

Description

General part information

Q-0F00M0 Series

Cable Assembly Coaxial BNC to BNC RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
