Technical Specifications
Parameters and characteristics for this part
| Specification | LPS22HBTR |
|---|---|
| Accuracy | 0.1 kPa |
| Accuracy | 0.015 PSI |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 290.08 PSI |
| Maximum Pressure [Max] | 2000 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 18.27 PSI |
| Operating Pressure [Max] | 126 kPa |
| Operating Pressure [Min] | 26 kPa |
| Operating Pressure [Min] | 3.77 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | I2C, SPI |

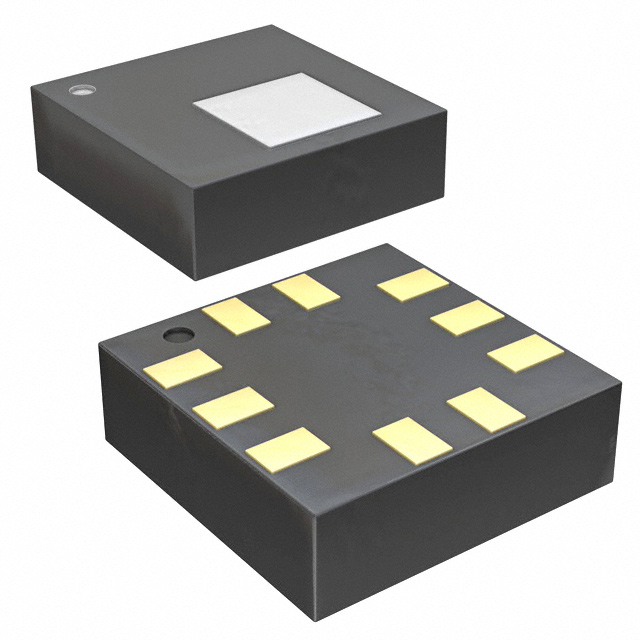

| Package / Case | 10-WFLGA |
| Port Style | No Port |
| Supplier Device Package | 10-HLGA (2x2) |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.92 | |
| 10 | $ 2.94 | |||
| 25 | $ 2.62 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.42 | |||
| 500 | $ 2.03 | |||
| 1000 | $ 1.90 | |||
| Digi-Reel® | 1 | $ 3.92 | ||
| 10 | $ 2.94 | |||
| 25 | $ 2.62 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.42 | |||
| 500 | $ 2.03 | |||
| 1000 | $ 1.90 | |||
| Tape & Reel (TR) | 8000 | $ 1.74 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.39 | |
| 10 | $ 2.03 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.97 | |||
| 100 | $ 1.94 | |||
| 250 | $ 1.84 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.69 | |||
Description
General part information
STEVAL-MKI192V1 Series
The LPS22DF is an ultracompact, piezoresistive, absolute pressure sensor that functions as a digital output barometer. The LPS22DF provides lower power consumption, achieving lower pressure noise than its predecessor.
The device comprises a sensing element and an IC interface that communicates over an I²C, MIPI I3CSM, or SPI interface from the sensing element to the application and supports a wide Vdd IO range for the digital interfaces as well. The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.
The LPS22DF is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -40 °C to +85 °C. The package is holed to allow external pressure to reach the sensing element.
