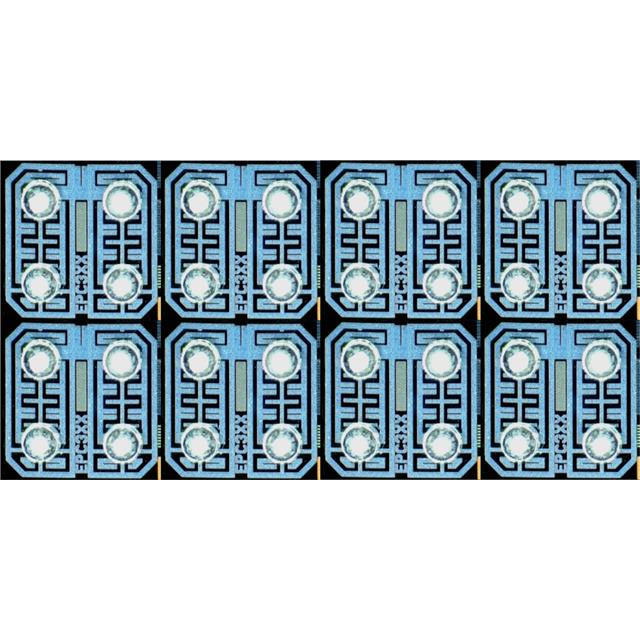

EPC330-CSP32-001

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 32XFBGA

Search across all available documentation for this part.

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 32XFBGA

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 850NM 32XFBGA

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Mounting Type	Responsivity @ nm	Viewing Angle	Current - Dark (Typ)	Color - Enhanced	Package / Case	Active Area	Spectral Range [Max]	Spectral Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Response Time
ESPROS Photonics AG EPC330-CSP32-001	20 V	850 nm	Surface Mount	0.6 A/W	150 °	640 pA	Infrared (NIR), Red	32-XFBGA, CSPBGA	6.84 mm²	1030 nm	400 nm	85 °C	-40 °C	300 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Photodiode 850nm 300ns 150° 32-XFBGA, CSPBGA
