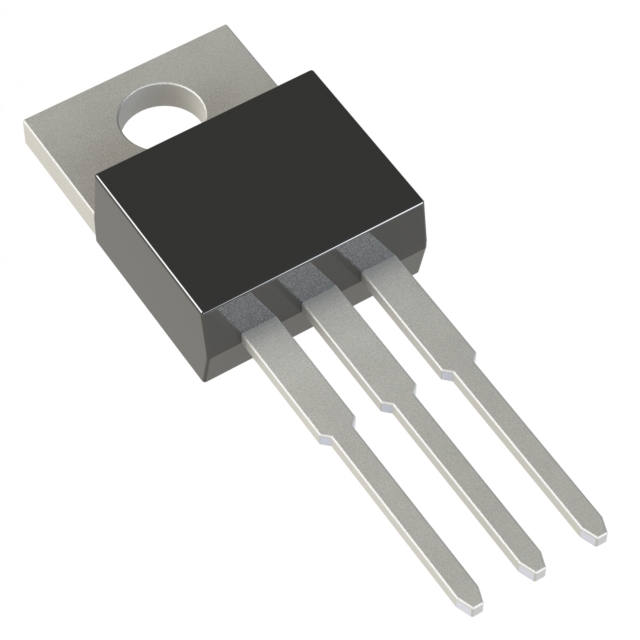

CLA30E1200PB

Active

IXYS

SCR 1.2KV 47A TO220AB

Search across all available documentation for this part.

Active

IXYS

SCR 1.2KV 47A TO220AB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLA30E1200PB	CLA30 Series

Configuration	-	Single
Current - Gate Trigger (Igt) (Max) [Max]	30 mA	28 - 40 mA
Current - Hold (Ih) (Max) [Max]	60 mA	50 - 60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300 A, 325 A	300 - 325 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	170 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	185 A
Current - Off State (Max) [Max]	10 µA	10 µA
Current - On State (It (AV)) (Max) [Max]	30 A	30 A
Current - On State (It (RMS)) (Max)	47 A	47 A
Current - On State (It (RMS)) (Max)	-	33 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Package / Case	TO-220-3	TO-247-3, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-220-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	TO-220-3	TO-247AD, TO-263HV, TO-220-3, TO-263AA
Triac Type	-	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V	1.3 V
Voltage - Off State	1.2 kV	1.2 kV
Voltage - On State (Vtm) (Max)	-	1.56 V
Voltage - On State (Vtm) (Max) [Max]	1.59 V	1.59 V

SCR 1.2KV 47A TO247AD

Part	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max)	Current - On State (It (RMS)) (Max)	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Package / Case	SCR Type	Current - Off State (Max) [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Triac Type	Voltage - On State (Vtm) (Max) [Max]
IXYS CLA30E1200HB	Through Hole	30 A	300 A, 325 A	1.56 V	47 A	TO-247AD	1.3 V	60 mA	TO-247-3	Standard Recovery	10 µA	1.2 kV	28 mA
IXYS CLA30MT1200NPZ-TRL	Surface Mount					TO-263HV	1.3 V	50 mA	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB			1.2 kV	40 mA	Single	33 A	150 °C	-40 °C	170 A	185 A	Standard
IXYS CLA30E1200PB	Through Hole	30 A	300 A, 325 A		47 A	TO-220-3	1.3 V	60 mA	TO-220-3	Standard Recovery	10 µA	1.2 kV	30 mA								1.59 V
IXYS CLA30E1200PC-TRL	Surface Mount	30 A	300 A, 325 A		47 A	TO-263AA	1.3 V	60 mA	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	Standard Recovery	10 µA	1.2 kV	30 mA								1.59 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.2 kV 47 A Standard Recovery Through Hole TO-220-3
