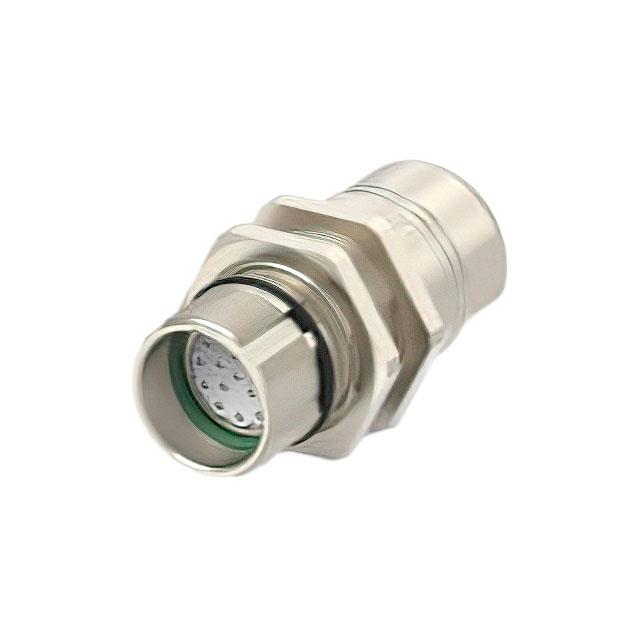

AKA013N00410240000
ActiveTE Intercontec
CONN RCP HSG M 12P INLINE PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AKA013N00410240000
ActiveTE Intercontec
CONN RCP HSG M 12P INLINE PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AKA013N00410240000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Cable Clamp, Backshell |
| Housing Color | Silver |
| Includes | 1 Backshell, 1 Cable Clamp, 1 O-Ring, 1 Connector |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Type | For Male Pins |
AKA01 Series
| Part | Ingress Protection | Mounting Type | Mounting Feature | Housing Color | Type | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Fastening Type | Connector Type | Note | Shell Size - Insert | Features | Shell Material | Number of Positions | Orientation | Shell Finish | Includes | Material Flammability Rating | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Intercontec | IP66/IP67 | Free Hanging (In-Line) Panel Mount | Bulkhead - Front Side Nut | Silver | For Male Pins | Polybutylene Terephthalate (PBT) | -20 C | 130 °C | Circular | Push-Twist | Receptacle Housing | Contacts Not Included | M23-12 | Backshell Cable Clamp | Zinc Die Cast | 12 | Keyed | Nickel | 1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring | UL94 V-0 | Shielded |
TE Intercontec | IP66/IP67 | Free Hanging (In-Line) | Silver | For Male Pins | Polybutylene Terephthalate (PBT) | -20 C | 130 °C | Circular | Push-Twist | Receptacle Housing | Contacts Not Included | M23-17 | Backshell Cable Clamp | Zinc Die Cast | Keyed | Nickel | 1 Backshell 1 Cable Clamp 1 Connector | UL94 V-0 | Shielded | ||
TE Intercontec | IP66/IP67 | Free Hanging (In-Line) | Silver | For Male Pins | Polybutylene Terephthalate (PBT) | -20 C | 130 °C | Circular | Push-Twist | Receptacle Housing | Contacts Not Included | M23-12 | Backshell Cable Clamp | Zinc Die Cast | 12 | Keyed | Nickel | 1 Backshell 1 Cable Clamp 1 Connector | UL94 V-0 | Shielded | |
TE Intercontec | IP66/IP67 | Free Hanging (In-Line) | Silver | For Male Pins | Polybutylene Terephthalate (PBT) | -20 C | 130 °C | Circular | Push-Twist | Receptacle Housing | Contacts Not Included | M23-12 | Backshell Cable Clamp | Zinc Die Cast | 12 | Keyed | Nickel | 1 Backshell 1 Cable Clamp 1 Connector | UL94 V-0 | Shielded | |
TE Intercontec | IP66/IP67 | Free Hanging (In-Line) | Silver | For Male Pins | Polybutylene Terephthalate (PBT) | -20 C | 130 °C | Circular | Push-Twist | Receptacle Housing | Contacts Not Included | M23-12 | Backshell Cable Clamp | Zinc Die Cast | 12 | Keyed | Nickel | 1 Backshell 1 Cable Clamp 1 Connector | UL94 V-0 | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.88 | |
| 10 | $ 26.16 | |||
| 28 | $ 25.03 | |||
| 56 | $ 24.22 | |||
| 112 | $ 23.42 | |||
| 252 | $ 22.13 | |||
Description
General part information
AKA01 Series
12 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell, Cable Clamp
