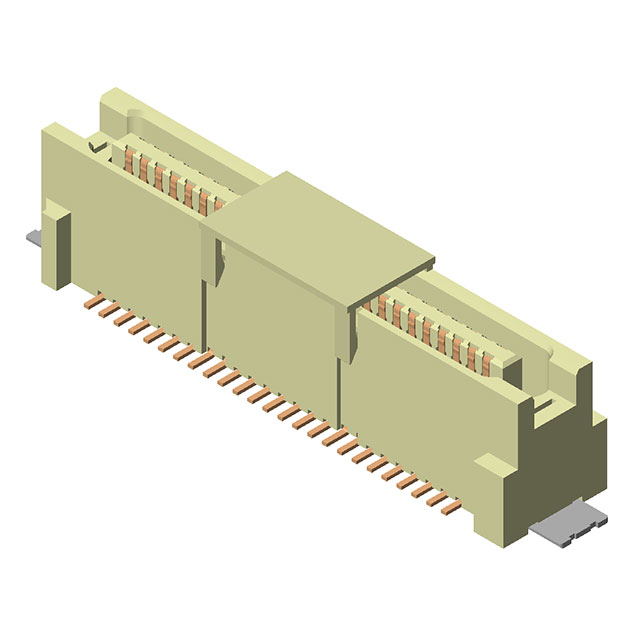

145077050112861+

Active

KYOCERA AVX

BOARD TO BOARD

Search across all available documentation for this part.

Active

KYOCERA AVX

BOARD TO BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

BOARD TO BOARD

Part	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Mated Stacking Heights	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
KYOCERA AVX 145077040102861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	40	Board Guide, Pick and Place
KYOCERA AVX 145077050101861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	50	Board Guide, Pick and Place
KYOCERA AVX 145077030120861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	30	Board Guide, Pick and Place
KYOCERA AVX 145077030110861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	30	Board Guide, Pick and Place	5.9 mm	0.232 in
KYOCERA AVX 145077050100861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	50	Board Guide, Pick and Place
KYOCERA AVX 145077030112861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	30	Board Guide, Pick and Place			7.9 mm	0.311 in
KYOCERA AVX 145077050112861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	50	Board Guide, Pick and Place			7.9 mm	0.311 in
KYOCERA AVX 145077050110861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	50	Board Guide, Pick and Place	5.9 mm	0.232 in
KYOCERA AVX 145077030100861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	30	Board Guide, Pick and Place
KYOCERA AVX 145077050115861+	Surface Mount	0.039 in	1 mm	2	Gold	8 mm, 10 mm, 12 mm	50	Board Guide, Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 4.94

General part information

50 Position Connector Plug, Center Strip Contacts Surface Mount Gold
