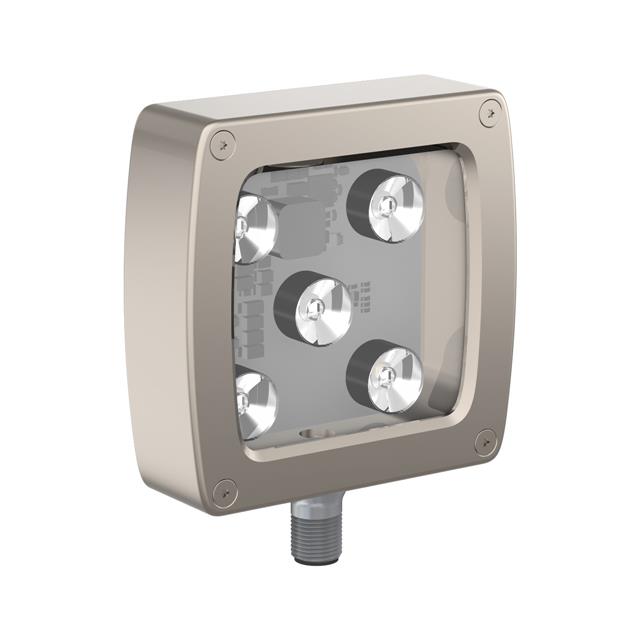

WLC90WL8Q
ActiveBANNER ENGINEERING
WLC90 WORK LIGHT; DIMENSIONS: 90
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLC90WL8Q
ActiveBANNER ENGINEERING
WLC90 WORK LIGHT; DIMENSIONS: 90
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLC90WL8Q |
|---|---|
| Approval Agency | cULus, CE |
| Housing Material | Aluminum (Al), Nickel Plated |
| Illumination Color | White, Cool |
| Ingress Protection | IP67/IP68G/IP69K |
| Length [x] | 3.5 in |
| Length [x] | 89 mm |
| Lens Type | Flat, Clear |
| Luminous Flux | 700 lm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Profile (W x H) [y] | 3.58 " |
| Profile (W x H) [y] | 91 mm |
| Profile (W x H) [z] | 28.2 mm |
| Profile (W x H) [z] | 1.11 " |
| Termination Style | Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WLC90WL Series
WLC90 WORK LIGHT; DIMENSIONS: 90
