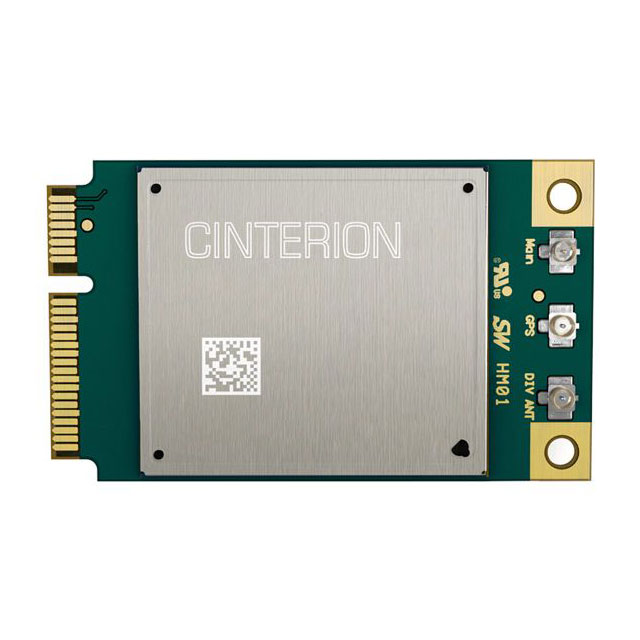

MPLS62-W

Obsolete

Telit Cinterion

RF TXRX MOD CELL U.FL CARD EDGE

Deep-Dive with AI

Search across all available documentation for this part.

MPLS62-W

Obsolete

Telit Cinterion

RF TXRX MOD CELL U.FL CARD EDGE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPLS62-W

Antenna Type	Antenna Not Included, U.FL
Current - Transmitting	1 A
Data Rate	10.2 Mbps
Frequency	800 MHz, 900 MHz, 850 MHz, 700 MHz, 2600 MHz, 1800 MHz, 2100 MHz, 1900 MHz
Frequency	AWS1
Memory Size	18 MB, 30 MB
Modulation	64-QAM
Mounting Type	Card Edge
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	HSPA+, UMTS, GSM, EDGE, WCDMA, LTE, GPRS
RF Family/Standard	Cellular
Serial Interfaces	mPCIe
Utilized IC / Part	Intel XMM 7160
Voltage - Supply	3.3 V

MPLS62 Series

RF TXRX MOD CELL U.FL CARD EDGE

Part	RF Family/Standard	Serial Interfaces	Data Rate	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Frequency	Frequency	Mounting Type	Utilized IC / Part	Power - Output	Antenna Type	Current - Transmitting	Voltage - Supply	Package / Case	Modulation
Telit Cinterion MPLS62-W	Cellular	mPCIe	10.2 Mbps	18 MB, 30 MB	90 °C	-40 °C	EDGE, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	AWS1	Card Edge	Intel XMM 7160	33 dBm	Antenna Not Included, U.FL	1 A	3.3 V	Module	64-QAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MPLS62 Series

Cellular EDGE, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, AWS1, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz Antenna Not Included, U.FL Card Edge

Documents

Technical documentation and resources

No documents available
