SO63-2-9030
ActiveTE Connectivity Aerospace, Defense and Marine

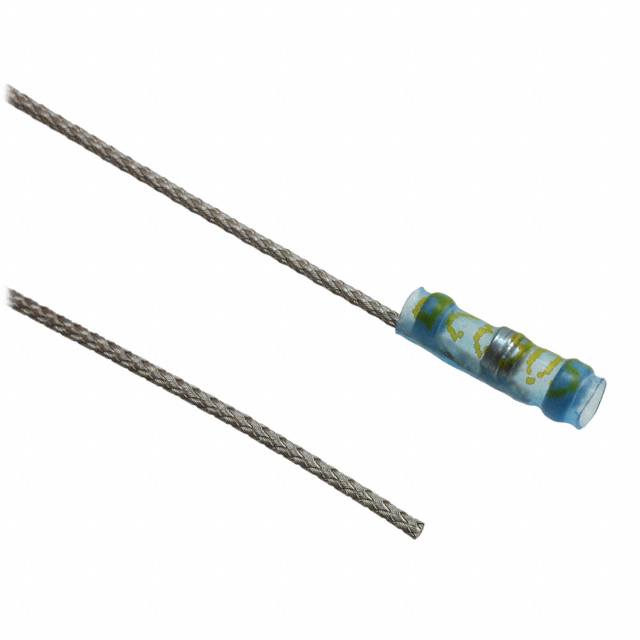

SLDR SLV WIRE-WIRE 0.105/0.145"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SO63-2-9030
ActiveTE Connectivity Aerospace, Defense and Marine
SLDR SLV WIRE-WIRE 0.105/0.145"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SO63-2-9030 | SO63 Series |
|---|---|---|
| Color | Transparent - Blue | Transparent - Blue |
| Diameter | - | 0.075 - 5.08 mm |
| Diameter | - | 0.17 - 2.67 in |
| Diameter [diameter] | 0.145 in, 0.105 " | 0.105 - 0.145 in |
| Diameter [diameter] | 3.68 mm, 2.67 mm | 2.67 - 3.68 mm |
| Features | Immersion Resistant, Pre-Installed Braid | Immersion Resistant, Pre-Installed Lead Wire, Pre-Installed Braid |
| Length | 16.51 mm | 16.51 mm |
| Length | 0.65 " | 0.65 " |
| Type | Wire to Wire | Wire to Wire |
SO63 Series
SLDR SLEEVE WIRE-WIRE 0.17/0.2"
| Part | Diameter | Diameter | Color | Length | Length | Type | Features | Diameter [diameter] | Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine SO63-3-55-26-90 | 4.32 mm, 5.08 mm | 0.17 in, 0.2 in | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant, Pre-Installed Lead Wire | ||
TE Connectivity Aerospace, Defense and Marine SO63-3-00 | 4.32 mm, 5.08 mm | 0.17 in, 0.2 in | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant | ||
TE Connectivity Aerospace, Defense and Marine SO63-1-55-22-90 | 0.075 in, 0.105 in | 1.91 mm, 2.67 mm | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant, Pre-Installed Lead Wire | ||
TE Connectivity Aerospace, Defense and Marine SO63-3-9030 | 4.32 mm, 5.08 mm | 0.17 in, 0.2 in | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant, Pre-Installed Braid | ||
TE Connectivity Aerospace, Defense and Marine SO63-1-55-20-90 | 0.075 in, 0.105 in | 1.91 mm, 2.67 mm | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant, Pre-Installed Lead Wire | ||
TE Connectivity Aerospace, Defense and Marine SO63-2-00 | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm | ||
TE Connectivity Aerospace, Defense and Marine SO63-2-9030 | Transparent - Blue | 16.51 mm | 0.65 " | Wire to Wire | Immersion Resistant, Pre-Installed Braid | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.63 | |
| 10 | $ 5.11 | |||
| 25 | $ 4.84 | |||
| 50 | $ 4.73 | |||
| 100 | $ 4.50 | |||
| 250 | $ 3.94 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.27 | |||
| 2500 | $ 3.04 | |||
Description
General part information
SO63 Series
Wire to Wire Solder Sleeve Transparent - Blue 0.105" (2.67mm), 0.145" (3.68mm)
