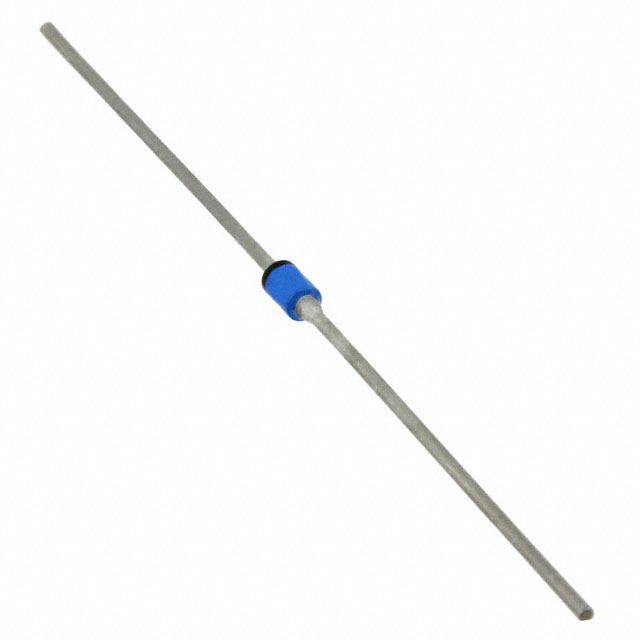

1N3155/TR
Active8.4V 10MA 15 OHMS TEMPERATURE COMPENSATED TR DO-35 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
1N3155/TR
Active8.4V 10MA 15 OHMS TEMPERATURE COMPENSATED TR DO-35 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N3155/TR | 1N3155 Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 10 µA | 10 µA |
| Impedance (Max) (Zzt) [Max] | 15 Ohms | 15 Ohms |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature [Max] | 100 °C | 100 - 347 °F |
| Operating Temperature [Min] | -55 °C | -65 - -55 ░C |
| Package / Case | Axial, DO-204AA, DO-7 | Axial, DO-204AA, DO-7, DO-213AA |
| Power - Max [Max] | 500 mW | 500 mW |
| Supplier Device Package | DO-7 | DO-7, DO-213AA |
| Tolerance | 5 % | 4.7 - 5 % |
| Voltage - Zener (Nom) (Vz) | 8.4 V | 8.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
1N3155 Series
Zener Diode Single 2-Pin 8.4V, 5%, 15Ohm, 500mW DO-35 Bag
| Part | Current - Reverse Leakage @ Vr | Impedance (Max) (Zzt) [Max] | Mounting Type | Supplier Device Package | Power - Max [Max] | Package / Case | Tolerance | Voltage - Zener (Nom) (Vz) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N3155 | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -65 ░C | 347 °F |
Microchip Technology 1N3155/TR | ||||||||||
Microchip Technology 1N3155A/TR | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -65 ░C | 347 °F |
Microchip Technology 1N3155-1 | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -65 ░C | 347 °F |
Microchip Technology 1N3155AE3 | ||||||||||
Microchip Technology 1N3155AE3/TR | ||||||||||
Microchip Technology 1N3155A/TR | ||||||||||
Microchip Technology 1N3155UR-1 | 10 µA | 15 Ohms | Surface Mount | DO-213AA | 500 mW | DO-213AA | 4.7 % | 8.4 V | -65 ░C | 347 °F |
Microchip Technology 1N3155/TR | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -55 °C | 100 °C |
Microchip Technology 1N3155-1 | ||||||||||
Microchip Technology 1N3155A | ||||||||||
Microchip Technology 1N3155UR-1 | ||||||||||
Microchip Technology 1N3155AE3/TR | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -55 °C | 100 °C |
Microchip Technology 1N3155 | ||||||||||
Microchip Technology 1N3155A | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -65 ░C | 347 °F |
Microchip Technology 1N3155AE3 | 10 µA | 15 Ohms | Through Hole | DO-7 | 500 mW | Axial, DO-204AA, DO-7 | 5 % | 8.4 V | -55 °C | 100 °C |
Description
General part information
1N3155 Series
The popular 1N3154 thru 1N3157A series of Zero-TC Reference Diodes provides a selection of 8.4 V nominal voltages and temperature coefficients to as low as 0.001 %/o C for minimal voltage change with temperature when operated at 10.0 mA. These glass axial-leaded DO-7 reference diodes are also available in JAN, JANTX, and JANTXV military qualifications. As a further option for commercial product, they are available as RoHS Compliant with an e3 suffix added to the part number. Microchip also offers numerous other Zener Reference Diode products for a variety of other voltages from 6.2 V to 200 V.
