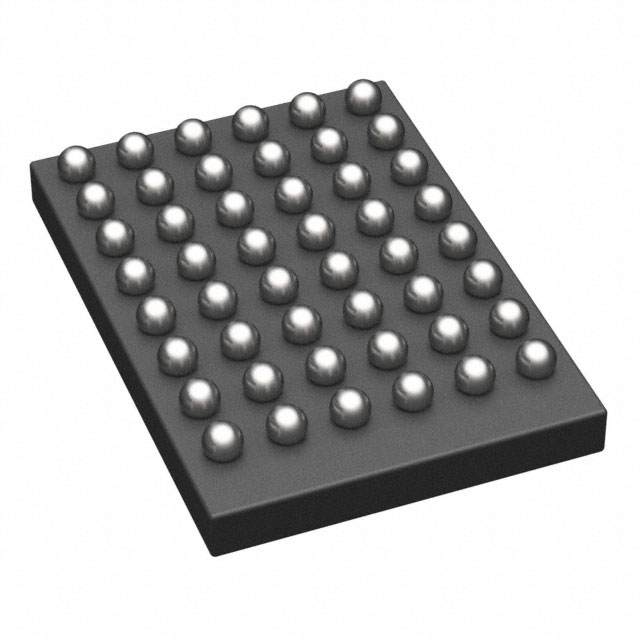

TFA9914UK/N1Z

Active

NXP USA Inc.

IC AMP CLASS D MONO 5.6W 48WLCSP

Search across all available documentation for this part.

Active

NXP USA Inc.

IC AMP CLASS D MONO 5.6W 48WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9914UK/N1Z

Max Output Power x Channels @ Load	5.6 W
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)
Package / Case	WLCSP, 48-UFBGA
Supplier Device Package	48-WLCSP (2.51x3.55)
Type	Class D
Voltage - Supply [Max]	10.2 V
Voltage - Supply [Min]	2.7 V

IC AMP CLASS D MONO 5.6W 48WLCSP

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Type	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package
NXP USA Inc. TFA9914UK/N1Z	48-UFBGA, WLCSP	85 °C	-40 °C	Surface Mount	1	5.6 W	Class D	1-Channel (Mono)	10.2 V	2.7 V	48-WLCSP (2.51x3.55)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.67
	Digi-Reel®	1	$ 3.67
	Tape & Reel (TR)	2000	$ 1.14

General part information

Amplifier IC 1-Channel (Mono) Class D 48-WLCSP (2.51x3.55)
