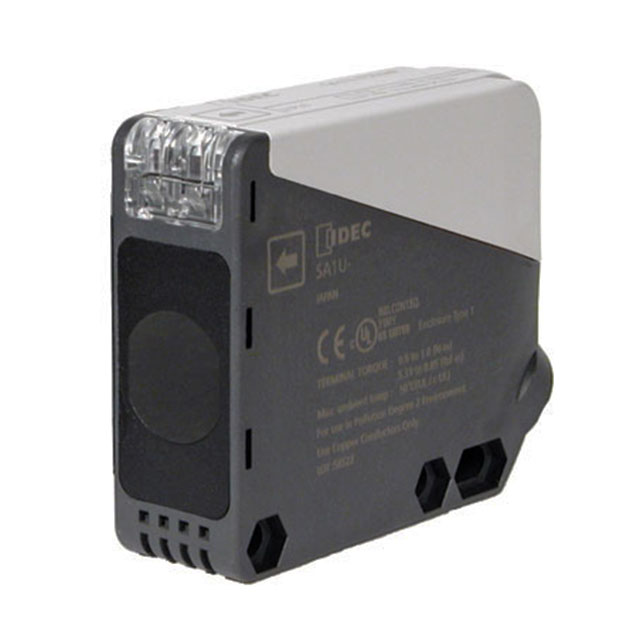

SA1U-P07M

Active

IDEC Corporation

PHOTOELECTRIC SENSOR, SA1U SERIES, 7 M, RETROREFLECTIVE, RELAY, 10 V TO 30 V, NO TIME DELAY

Search across all available documentation for this part.

Active

IDEC Corporation

PHOTOELECTRIC SENSOR, SA1U SERIES, 7 M, RETROREFLECTIVE, RELAY, 10 V TO 30 V, NO TIME DELAY

Technical Specifications

Parameters and characteristics for this part

PHOTOELECTRIC SENSOR, SA1U SERIES, 7 M, RETROREFLECTIVE, RELAY, 10 V TO 30 V, NO TIME DELAY

Part	Sensing Distance	Sensing Distance	Output Configuration	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Sensing Method	Adjustment Type	Ingress Protection
IDEC Corporation SA1U-P07M	275.591 in	7 m	SPDT	20 ms	-25 °C	60 °C	Red (660nm)	240 VAC, 240 VDC	12 V, 24 VAC	Terminal Block	Polarized, Retroreflective	Adjustable	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective, Polarized Optical Sensor 275.591" (7m) SPDT

Technical documentation and resources

No documents available
