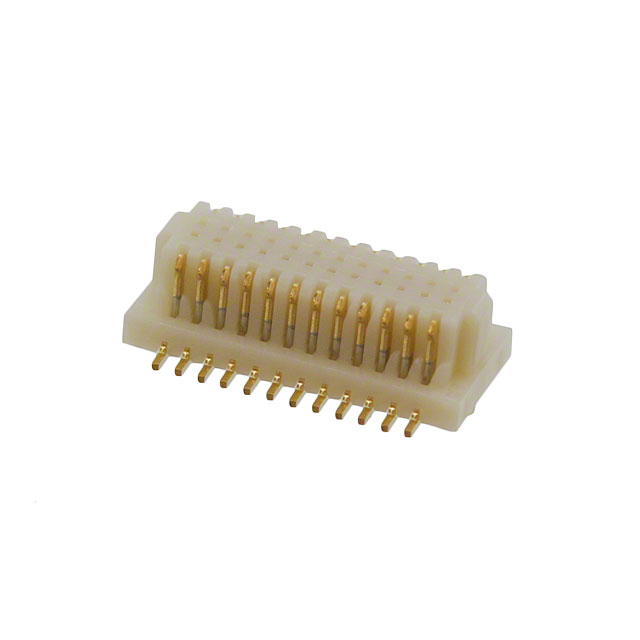

24R-JMCS-G-B-TF

Obsolete

JST Sales America Inc.

CONN RCPT 24POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JST Sales America Inc.

CONN RCPT 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	24R-JMCS-G-B-TF

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Connector Type
JST Sales America Inc. 24R-JMCS-G-B-TF	Board Guide	Gold	0.5 mm	0.02 in	2	Surface Mount	0.091 in	2.3 mm	24	Center Strip Contacts Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
