WB246D112S

Active

E-Switch

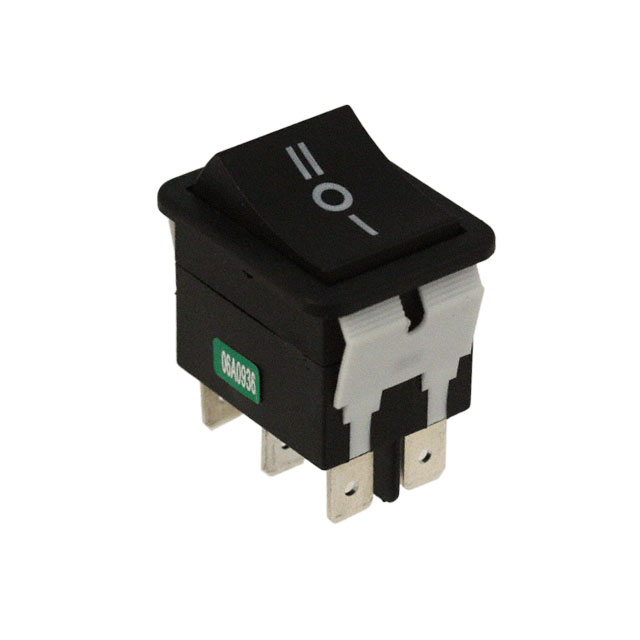

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WB246D112S	WB246D1 Series

Actuator Marking	- O =	- O =, I O II
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Circuit	DPDT	DPDT
Color - Actuator/Cap	Black	Red, Black
Current Rating (Amps)	20 A	20 A
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPDT 20A 125V

Part	Current Rating (Amps)	Ingress Protection	Mounting Type	Color - Actuator/Cap	Approval Agency	Voltage Rating - AC	Actuator Type	Actuator Marking	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Circuit
E-Switch WB246D192S	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Red	CE, cULus, TUV	125 V	Concave (Curved)	- O =	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT
E-Switch WB246D112S	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	Concave (Curved)	- O =	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT
E-Switch WB246D1929	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Red	CE, cULus, TUV	125 V	Concave (Curved)	I O II	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In
