WB246D1929

Active

E-Switch

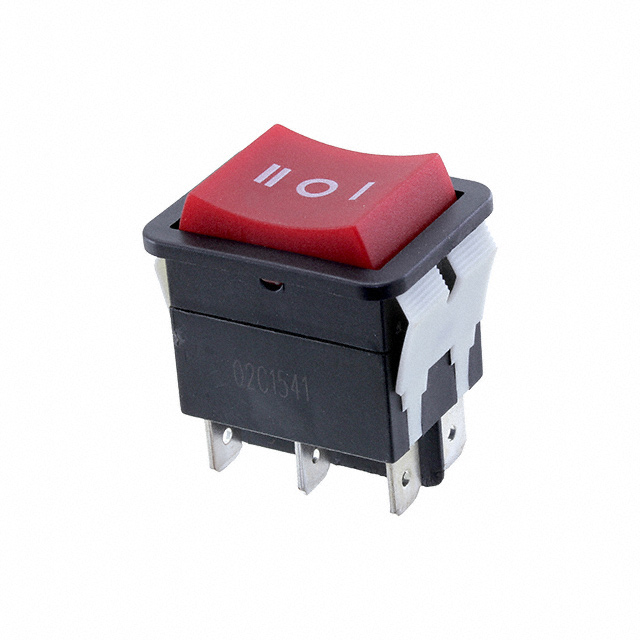

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WB246D1929	WB246D1 Series

Actuator Marking	I O II	- O =, I O II
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Circuit	DPDT	DPDT
Color - Actuator/Cap	Red	Red, Black
Current Rating (Amps)	20 A	20 A
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPDT 20A 125V

Part	Current Rating (Amps)	Ingress Protection	Mounting Type	Color - Actuator/Cap	Approval Agency	Voltage Rating - AC	Actuator Type	Actuator Marking	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Circuit
E-Switch WB246D192S	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Red	CE, cULus, TUV	125 V	Concave (Curved)	- O =	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT
E-Switch WB246D112S	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	Concave (Curved)	- O =	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT
E-Switch WB246D1929	20 A	IP55 - Dust Protected, Water Resistant	Panel Mount, Snap-In	Red	CE, cULus, TUV	125 V	Concave (Curved)	I O II	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off-On	DPDT
