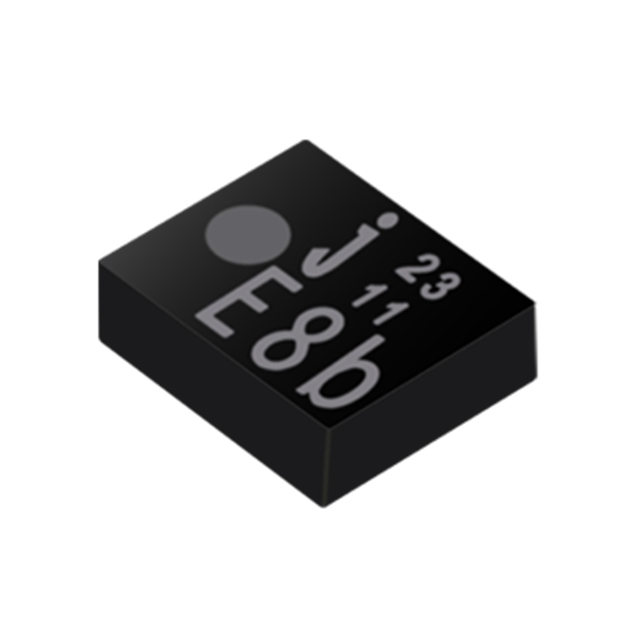

6TPS150MZD
ActivePanasonic Industrial Automation Sales
CAP TANT POLY 150UF 6.3V 1411
Deep-Dive with AI
Search across all available documentation for this part.
6TPS150MZD
ActivePanasonic Industrial Automation Sales
CAP TANT POLY 150UF 6.3V 1411
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6TPS150MZD |
|---|---|
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | B1S |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.56 | |
| 10 | $ 1.03 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.56 | ||
| 10 | $ 1.03 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
| Tape & Reel (TR) | 2500 | $ 0.58 | ||
| 5000 | $ 0.56 | |||
| 7500 | $ 0.55 | |||
| 12500 | $ 0.54 | |||
| 17500 | $ 0.53 | |||
Description
General part information
6TPS Series
150 µF Molded Tantalum Polymer Capacitor 6.3 V 1411 (3528 Metric) 35mOhm @ 100kHz
Documents
Technical documentation and resources
No documents available
