1205 12.5"X36YD

Active

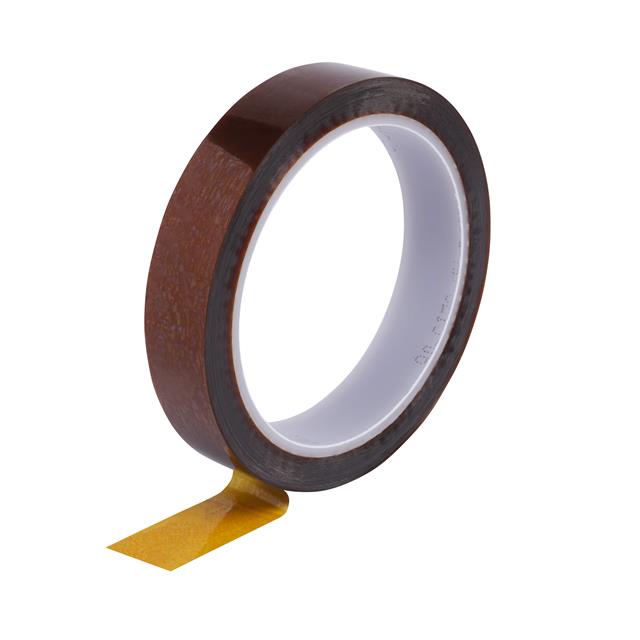

TAPE ELECTRICAL AMB 12.50"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

1205 12.5"X36YD

Active

TAPE ELECTRICAL AMB 12.50"X36YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1093.75

Description

General part information

1205 Series

Electrical Tape Acrylic Adhesive Amber 12.50" (317.50mm) X 108' (32.9m) 36 yds

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1205 12.5"X36YD	1205 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	-	Polyimide
Backing, Carrier [custom]	Polyimide Film	Polyimide Film
Backing, Carrier [custom]	Polyimide Film	Polyimide Film
Color	Amber	Amber
Length	36 yd	36 - 144 yd
Length	32.9 m	32.9 - 132 m
Length	108 ft	108 - 432 ft
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	27 - 80 °F
Storage/Refrigeration Temperature	-	10 °C
Tape Type	Electrical	Electrical, Film
Temperature Range [Max]	311 °F	311 °F
Temperature Range [Min]	-40 °F	-40 °F
Thickness	0.0032 in	0.003 - 0.0032 in
Thickness	3.2 mils	3 - 3.2 mils
Thickness	0.081 mm	0.076 - 0.081 mm
Thickness - Adhesive	-	2 mils
Thickness - Adhesive	-	0.051 mm
Thickness - Adhesive	-	0.002 "
Thickness - Backing, Carrier	-	1 mils
Thickness - Backing, Carrier	-	0.025 mm
Thickness - Backing, Carrier	-	0.001 "
Usage	Electrically Insulating	Electrically Insulating, High Temperature, Insulating
Width	-	0.25 - 19.05 "
Width	-	0.75 - 209.55 mm
Width	-	0.25 - 8.25 in
Width	-	6 in
Width	-	152.4 mm
Width [y]	12.5 in	2 - 12.5 in
Width [y]	317.5 mm	50.8 - 317.5 mm

1205 Series

TAPE ELECTRICAL AMB 2 1/2"X36YD

Part	Length	Length	Length	Usage	Thickness	Thickness	Thickness	Shelf Life	Adhesive	Shelf Life Start	Color	Tape Type	Backing, Carrier [custom]	Backing, Carrier [custom]	Width	Width	Width	Temperature Range [Max]	Temperature Range [Min]	Width [y]	Width [y]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]
3M 1205 2.5"X36YD	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film		63.5 mm	2.5 in	311 °F	-40 °F
3M 1205 12.5"X36YD	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film				311 °F	-40 °F	12.5 in	317.5 mm
3M 1205-1/4"X36YD	36 yd	32.9 m	108 ft		0.003 in	3 mils	0.076 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film	0.25 in	6.35 mm	0.25 in	311 °F	-40 °F			1 mils	0.025 mm	0.001 "
3M 1205 12.5"X144YD	144 yds	132 m	432 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film				311 °F	-40 °F	12.5 in	317.5 mm
3M 1205 3/4"X36YD	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film	19.05 mm	0.75 in	0.75 in	311 °F	-40 °F
3M 1205 8.25"X144YD	144 yds	132 m	432 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film		209.55 mm	8.25 in	311 °F	-40 °F
3M 1205 2"X36YD	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film				311 °F	-40 °F	2 "	50.8 mm
3M 1205 19MMX33MMC12	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film	19.05 mm	0.75 in	0.75 in	311 °F	-40 °F
3M 1205 1/2"	36 yd	32.9 m	108 ft	High Temperature, Insulating	0.003 in	3 mils	0.076 mm	60 Months	Acrylic	Date of Manufacture	Amber	Film			0.5 in	12.7 mm	0.5 in	311 °F	-40 °F			1 mils	0.025 mm	0.001 "	Polyimide	27 °C, 80 °F	10 °C	2 mils	0.051 mm	0.002 "
3M 1205 7/8"X36YD	36 yd	32.9 m	108 ft	Electrically Insulating	0.0032 in	3.2 mils	0.081 mm	60 Months	Acrylic	Date of Manufacture	Amber	Electrical	Polyimide Film	Polyimide Film	0.875 in	22.35 mm	0.88 in	311 °F	-40 °F
