2-1355154-1

Active

TE Connectivity AMP Connectors

MQS STIFTWANNE 18P

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

MQS STIFTWANNE 18P

Technical Specifications

Parameters and characteristics for this part

Specification	2-1355154-1

Connector Type	Header
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Natural
Insulation Height [z]	20.3 mm
Insulation Height [z]	0.799 in
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

MQS STIFTWANNE 18P

Part	Contact Shape	Style	Material Flammability Rating	Shrouding	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Fastening Type	Insulation Height [z]	Insulation Height [z]	Features	Insulation Color	Termination
TE Connectivity AMP Connectors 2-1355154-1	Square	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	All	-40 °C	120 °C	Header	2.54 mm	0.1 in	Copper Alloy	2	0.1 in	2.54 mm	Polyethylene Terephthalate (PET), Glass Filled	18	0.134 in	3.4 mm	6.7 mm	0.264 in	Male Pin	Through Hole	Push-Pull	20.3 mm	0.799 in	Mounting Flange	Natural	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

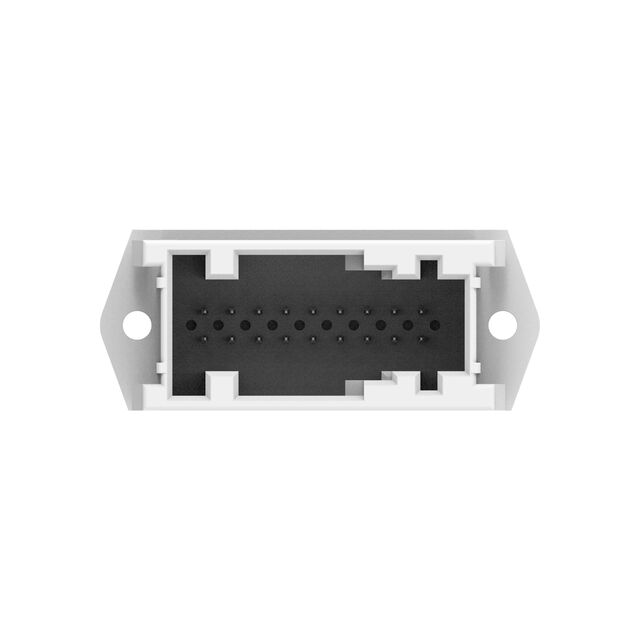

Connector Header Through Hole 18 position 0.100" (2.54mm)
