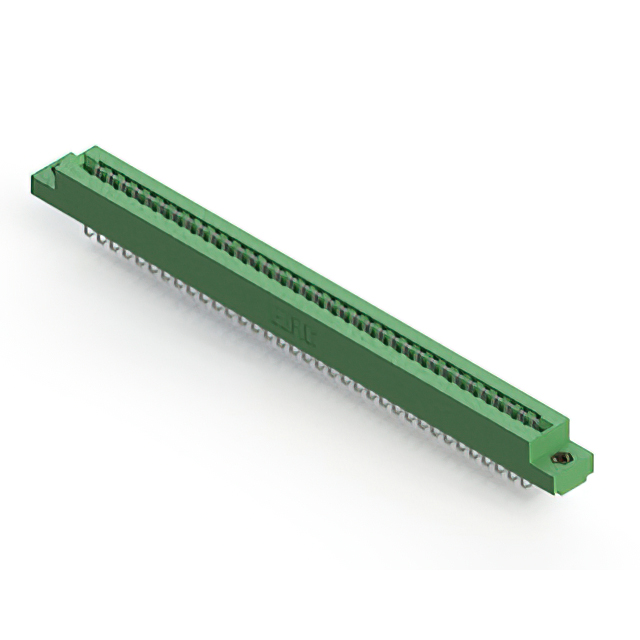

807-070-459-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.156

807-070-459-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 70POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

807-070 Series

70 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	807-070-459-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole, Right Angle
Number of Positions	70, 35
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	2 rows

807-070 Series

...

Part	Contact Material	Number of Positions	Card Type	Card Thickness (Min)	Card Thickness (Max)	Termination	Color	Contact Finish	Number of Rows	Mounting Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Gender	Read Out	Pitch	Flange Feature	Material - Insulation	Termination Rows	Flange Feature Diameter	Contact Finish Thickness	Features
EDAC Inc. 807-070-459-208	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Tin	2	Right Angle Through Hole	Semi Bellows	125 °C	-40 °C	Female	Single	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-070-440-203	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Wire Wrap	Green	Tin	2	Through Hole	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in	Floating Bobbin Flush Mount	DAP Diallyl Phthalate	2 rows	0.116 in
EDAC Inc. 807-070-560-212	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Gold	2	Board Edge Straddle Mount	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in	Side Mount Opening Unthreaded	DAP Diallyl Phthalate	2 rows	0.128 in	10 Ąin	Card Extender
EDAC Inc. 807-070-555-204	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Gold	2	Board Edge Straddle Mount	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in	Flush Mount Top Opening Unthreaded	DAP Diallyl Phthalate	2 rows	0.156 in	10 Ąin	Card Extender
EDAC Inc. 807-070-524-201	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Gold	2	Through Hole	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in		DAP Diallyl Phthalate	2 rows		10 Ąin
EDAC Inc. 807-070-556-212	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Gold	2	Board Edge Straddle Mount	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in	Side Mount Opening Unthreaded	DAP Diallyl Phthalate	2 rows	0.128 in	10 Ąin	Card Extender
EDAC Inc. 807-070-458-208	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Tin	2	Right Angle Through Hole	Semi Bellows	125 °C	-40 °C	Female	Single	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-070-560-201	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Gold	2	Board Edge Straddle Mount	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in		DAP Diallyl Phthalate	2 rows		10 Ąin	Card Extender
EDAC Inc. 807-070-458-207	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Solder	Green	Tin	2	Right Angle Through Hole	Semi Bellows	125 °C	-40 °C	Female	Single	0.156 in	Flush Mount M3 Threaded Insert Top Opening	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-070-442-204	Copper Alloy	35 70	Dual Edge Non Specified	0.054 in	0.07 in	Wire Wrap	Green	Tin	2	Through Hole	Semi Bellows	125 °C	-40 °C	Female	Dual	0.156 in	Flush Mount Top Opening Unthreaded	DAP Diallyl Phthalate	2 rows	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

807-070-459-208 | Datasheet
