C4AEGBU5100A1XK

Active

KEMET

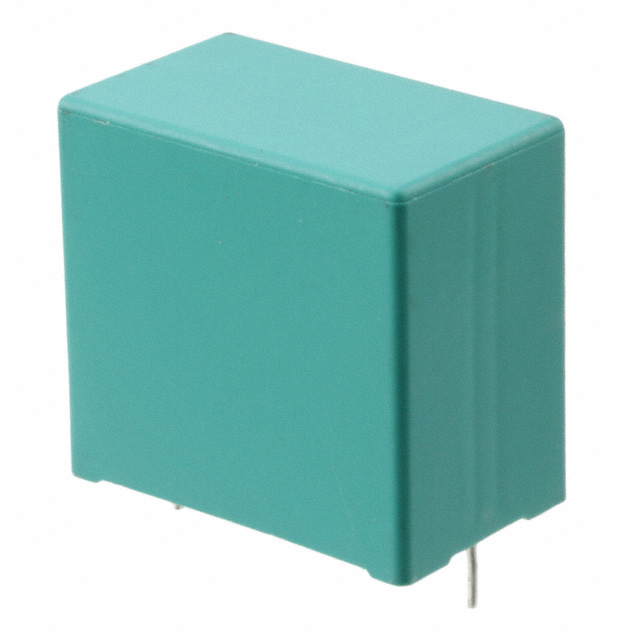

CAP FILM 10UF 10% 450VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Film Capacitors Catalog Datasheet

C4AEGBU5100A1XK

Active

KEMET

CAP FILM 10UF 10% 450VDC RADIAL

Deep-Dive with AI

DocumentsPower Film Capacitors Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AEGBU5100A1XK

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	10 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8.1 mOhms
Height - Seated (Max) [Max] [z]	0.992 in
Height - Seated (Max) [Max] [z]	25.2 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	1.24 in
Size / Dimension [x]	31.5 mm
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	450 V

C4AEGB Series

Part	Applications	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	ESR (Equivalent Series Resistance)	Termination	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - DC	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C4AEGBW6100A3NJ	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	100 µF	4.2 mOhm	PC Pins	Radial - 4 Leads	52.5 mm	2.067 in	450 V	5 %	35 mm	1.378 "	2.264 in	57.5 mm	Through Hole
KEMET C4AEGBU5200A12J	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	20 µF	4.8 mOhms	PC Pins	Radial	27.5 mm	1.083 in	450 V	5 %	22 mm	0.866 in	1.24 in	31.5 mm	Through Hole	1.465 in	37.2 mm
KEMET C4AEGBW6100H3NJ	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	100 °C	-40 °C	100 µF		PC Pins	Radial	52.5 mm	2.067 in	450 V	5 %	35 mm	1.378 "	2.264 in	57.5 mm	Through Hole
KEMET C4AEGBU5100A1XK	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	10 µF	8.1 mOhms	PC Pins	Radial	27.5 mm	1.083 in	450 V	10 %	13 mm	0.512 in	1.24 in	31.5 mm	Through Hole	0.992 in	25.2 mm
KEMET C4AEGBW5350A3JJ	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	35 µF	9.1 mOhms	PC Pins	Radial - 4 Leads	37.5 mm	1.476 in	450 V	5 %	28 mm	1.102 in	1.673 in	42.5 mm	Through Hole	1.465 in	37.2 mm
KEMET C4AEGBU5125A11J	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	12.5 µF	6.2 mOhms	PC Pins	Radial	27.5 mm	1.083 in	450 V	5 %					Through Hole	1.15 in	29.2 mm
KEMET C4AEGBW5500A3LJ	DC Filtering DC Link High Frequency Switching	Metallized Polypropylene (PP)	85 °C	-40 °C	50 µF	2.5 mOhms	PC Pins	Radial - 4 Leads	37.5 mm	1.476 in	450 V	5 %	30 mm	1.181 in	1.654 in	42 mm	Through Hole	1.772 in	45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.42
		10	$ 3.80
		50	$ 3.45
		234	$ 2.85
		702	$ 2.47
		1170	$ 2.30
		2574	$ 2.25

Description

General part information

C4AEGB Series

10 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
