Specification	5917628-5

Connector Type	Outer Shroud Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	11.8 µin
Height Above Board	0.217 in
Mated Stacking Height	8 mm
Mounting Type	Through Hole
Number of Positions	120
Number of Rows	2
Pitch	0.05 in

5917628 Series

Part	Contact Finish	Connector Type	Number of Positions	Pitch	Height Above Board	Mounting Type	Number of Rows	Mated Stacking Height	Contact Finish Thickness
TE Connectivity AMP Connectors 5917628-5	Gold	Outer Shroud Contacts Receptacle	120	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin
TE Connectivity AMP Connectors 5917628-3	Gold	Outer Shroud Contacts Receptacle	80	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin
TE Connectivity AMP Connectors 5917628-8	Gold	Outer Shroud Contacts Receptacle	180	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin
TE Connectivity AMP Connectors 5917628-2	Gold	Outer Shroud Contacts Receptacle	60	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin

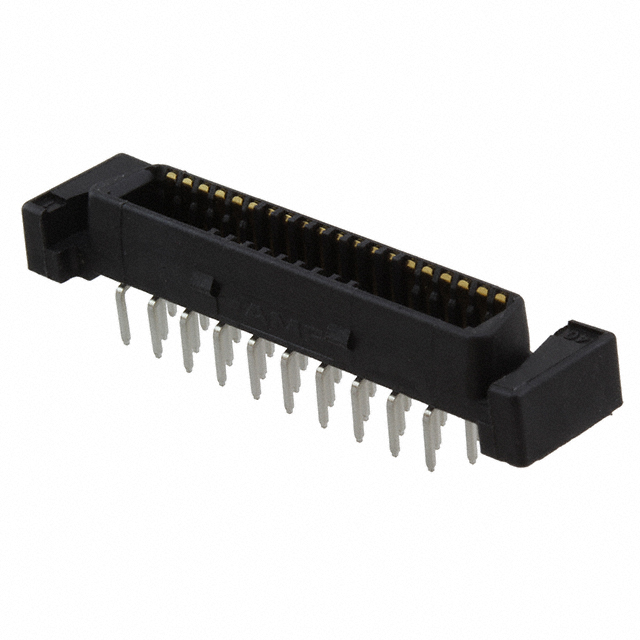

TE Connectivity AMP Connectors 5917628-1	Gold	Outer Shroud Contacts Receptacle	40	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin
TE Connectivity AMP Connectors 5917628-4	Gold	Outer Shroud Contacts Receptacle	100	0.05 in	0.217 in	Through Hole	2	8 mm	11.8 µin
