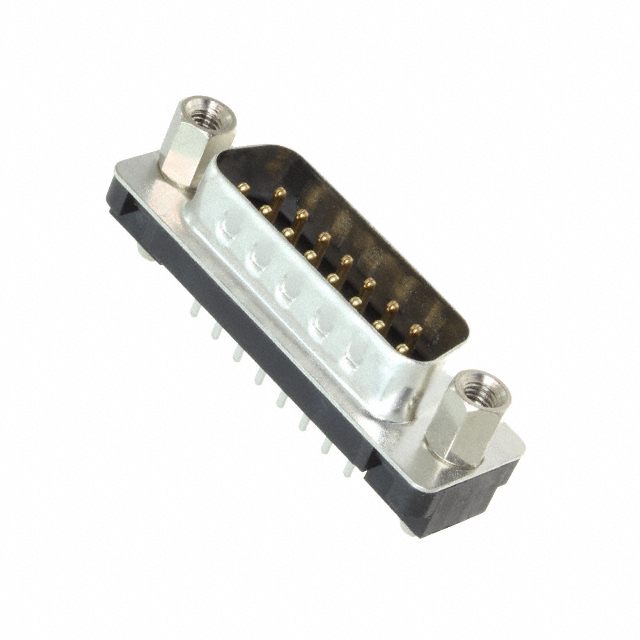

L717TSAG15POL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L717TSAG15POL2RM8

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	600 V

Part	Contact Form	Number of Rows	Contact Type	Connector Type	Flange Feature	Current Rating (Amps)	Shell Size, Connector Layout	Termination	Material Flammability Rating	Features	Connector Style	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Dielectric Material	Voltage Rating	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717TSAG15POL2C309	Stamped	2	Signal	Male Pins Plug	Board Side (M3)	5 A	2	Solder	UL94 V-0	Grounding Indents	D-Sub	Through Hole	Gold	0.76 Ám	30 Áin	Copper Alloy	-55 °C	125 °C	15	Thermoplastic Glass Filled	600 V
Amphenol ICC (Commercial Products) L717TSAG15POL2RM8C309	Stamped	2	Signal	Male Pins Plug	Female Screwlock (M3) Mating Side	5 A	2	Solder	UL94 V-0	Board Lock Grounding Indents	D-Sub	Through Hole	Gold	0.76 Ám	30 Áin	Copper Alloy	-55 °C	125 °C	15	Thermoplastic Glass Filled	600 V
Amphenol ICC (Commercial Products) L717TSAG15POL2RM8	Stamped	2	Signal	Male Pins Plug	Female Screwlock (M3) Mating Side	5 A	2	Solder	UL94 V-0	Board Lock Grounding Indents	D-Sub	Through Hole	Gold			Copper Alloy	-55 °C	125 °C	15	Thermoplastic Glass Filled	600 V	Flash
Amphenol ICC (Commercial Products) L717TSAG15POL2	Stamped	2	Signal	Male Pins Plug	Board Side (M3)	5 A	2	Solder	UL94 V-0	Grounding Indents	D-Sub	Through Hole	Gold			Copper Alloy	-55 °C	125 °C	15	Thermoplastic Glass Filled	600 V	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
