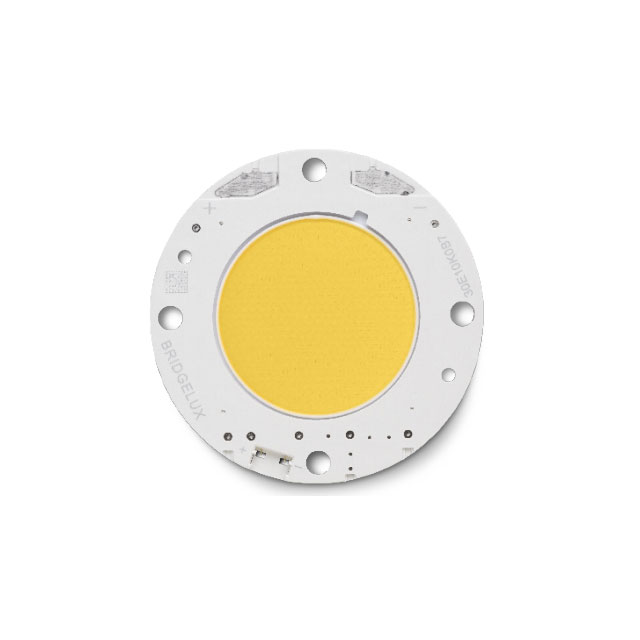

BXRC-65C10K1-C-83

Active

BRIDGELUX

LED COB VERO 29C WHT ROUND 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-65C10K1-C-83

Active

BRIDGELUX

LED COB VERO 29C WHT ROUND 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-65C10K1-C-83	BXRC-65 Series

CCT (K)	6500 K	6500 K
Color	Cool, White	Cool, White
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	4.75 A	1 - 900 A
Current - Test	1.3 A	1.05 - 900 mA
Features	-	With Connector
Height [z]	1.9 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	29.1 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	195 lm/W	150 - 195 lm/W
Luminous Flux @ Current/Temperature	16892 lm	1327 - 21269 lm
Size / Dimension [diameter]	49.2 mm	20 - 49.2 mm
Temperature - Test	-	25 - 85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	66.7 V	25.3 - 69.4 V

BXRC-65 Series

LED COB VERO 13 WHT RND 6500K

...

Part	Lumens/Watt @ Current - Test	Type	Size / Dimension [diameter]	Viewing Angle	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	Configuration	Voltage - Forward (Vf) (Typ)	CCT (K)	Lens Type	Current - Max [Max]	Temperature - Test	Color	Light Emitting Surface (LES) [diameter]	Current - Test	Features
BRIDGELUX BXRC-65E2001-C-73	158 lm/W	Chip On Board (COB)	36.2 mm	120 °	80	1.9 mm	3383 lm	Round	33.9 V	6500 K	Flat	1.26 A	85 °C	Cool, White	13.2 mm	630 mA
BRIDGELUX BXRC-65C4001-C-74	159 lm/W	Chip On Board (COB)	36.2 mm		70	1.9 mm	6340 lm	Round	34.1 V	6500 K	Flat	2.34 A	85 °C	Cool, White	18.4 mm		With Connector
BRIDGELUX BXRC-65E2001-B-73-SE	156 lm/W	Chip On Board (COB)	36.2 mm	120 °	80	3.6 mm	2382 lm	Round	33.9 V	6500 K	Flat	900 mA	85 °C	Cool, White	13.4 mm	450 mA
BRIDGELUX BXRC-65C1001-D-73-SE	155 lm/W	Chip On Board (COB)	30.8 mm	120 °	70	3.6 mm	1376 lm	Round	25.3 V	6500 K	Flat	700 mA	85 °C	Cool, White	9.9 mm	350 mA
BRIDGELUX BXRC-65C1001-C-73	173 lm/W	Chip On Board (COB)	20 mm	120 °	70	1.9 mm	2168 lm	Starboard	34.8 V	6500 K	Flat	720 mA		Cool, White	9.9 mm	360 mA	With Connector
BRIDGELUX BXRC-65C4001-B-74	159 lm/W	Chip On Board (COB)	36.2 mm		70	1.9 mm	4876 lm	Round	34.1 V	6500 K	Flat	1.8 A	85 °C	Cool, White	18.4 mm	900 mA	With Connector
BRIDGELUX BXRC-65C10K1-B-73-SE	179 lm/W	Chip On Board (COB)	49.2 mm	120 °	70	3.6 mm	16754 lm	Round	52 V	6500 K	Flat	3.6 A		Cool, White	29.2 mm	1.8 A
BRIDGELUX BXRC-65C1001-D-73	173 lm/W	Chip On Board (COB)	20 mm	120	70	1.9 mm	1575 lm	Starboard	26 V	6500 K	Flat	700 mA	25 C	Cool, White	9.9 mm	350 mA	With Connector
BRIDGELUX BXRC-65C10K1-C-74	179 lm/W	Chip On Board (COB)	49.2 mm	120 °	70	1.9 mm	21269 lm	Round	69.4 V	6500 K	Flat	3.42 A		Cool, White	29.2 mm	1.71 A
BRIDGELUX BXRC-65E10K1-D-74		Chip On Board (COB)	49.2 mm	120 °	80	1.9 mm	13581 lm	Round	37.6 V	6500 K	Flat	4.2 A		Cool, White	29.2 mm	2.1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.48
		10	$ 23.65

Description

General part information

BXRC-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® 29 Array White, Cool Round
