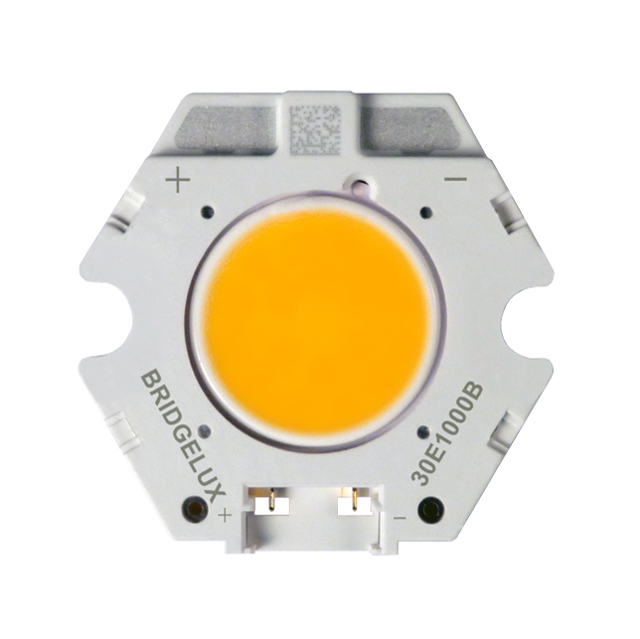

BXRC-65C1001-C-73

Active

BRIDGELUX

2168LM 6500K 70 120° 34.8V COLD WHITE CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-65C1001-C-73

Active

BRIDGELUX

2168LM 6500K 70 120° 34.8V COLD WHITE CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	400	$ 4.10
LCSC	Piece	1	$ 10.85
		200	$ 4.33
		400	$ 4.19
		1000	$ 4.11

Description

General part information

BXRC-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 10 Array White, Cool Starboard

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-65C1001-C-73	BXRC-65 Series

CCT (K)	6500 K	6500 K
Color	Cool, White	Cool, White
Configuration	Starboard	Round, Starboard
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	720 mA	1 - 900 A
Current - Test	360 mA	1.05 - 900 mA
Features	With Connector	With Connector
Height [z]	1.9 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9.9 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	173 lm/W	150 - 195 lm/W
Luminous Flux @ Current/Temperature	2168 lm	1327 - 21269 lm
Size / Dimension [diameter]	20 mm	20 - 49.2 mm
Temperature - Test	-	25 - 85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34.8 V	25.3 - 69.4 V

BXRC-65 Series

LED COB VERO 13 WHT RND 6500K

...

Part	Lumens/Watt @ Current - Test	Type	Size / Dimension [diameter]	Viewing Angle	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	Configuration	Voltage - Forward (Vf) (Typ)	CCT (K)	Lens Type	Current - Max [Max]	Temperature - Test	Color	Light Emitting Surface (LES) [diameter]	Current - Test	Features
BRIDGELUX BXRC-65E2001-C-73	158 lm/W	Chip On Board (COB)	36.2 mm	120 °	80	1.9 mm	3383 lm	Round	33.9 V	6500 K	Flat	1.26 A	85 °C	Cool, White	13.2 mm	630 mA
BRIDGELUX BXRC-65C4001-C-74	159 lm/W	Chip On Board (COB)	36.2 mm		70	1.9 mm	6340 lm	Round	34.1 V	6500 K	Flat	2.34 A	85 °C	Cool, White	18.4 mm		With Connector
BRIDGELUX BXRC-65E2001-B-73-SE	156 lm/W	Chip On Board (COB)	36.2 mm	120 °	80	3.6 mm	2382 lm	Round	33.9 V	6500 K	Flat	900 mA	85 °C	Cool, White	13.4 mm	450 mA
BRIDGELUX BXRC-65C1001-D-73-SE	155 lm/W	Chip On Board (COB)	30.8 mm	120 °	70	3.6 mm	1376 lm	Round	25.3 V	6500 K	Flat	700 mA	85 °C	Cool, White	9.9 mm	350 mA
BRIDGELUX BXRC-65C1001-C-73	173 lm/W	Chip On Board (COB)	20 mm	120 °	70	1.9 mm	2168 lm	Starboard	34.8 V	6500 K	Flat	720 mA		Cool, White	9.9 mm	360 mA	With Connector
BRIDGELUX BXRC-65C4001-B-74	159 lm/W	Chip On Board (COB)	36.2 mm		70	1.9 mm	4876 lm	Round	34.1 V	6500 K	Flat	1.8 A	85 °C	Cool, White	18.4 mm	900 mA	With Connector
BRIDGELUX BXRC-65C10K1-B-73-SE	179 lm/W	Chip On Board (COB)	49.2 mm	120 °	70	3.6 mm	16754 lm	Round	52 V	6500 K	Flat	3.6 A		Cool, White	29.2 mm	1.8 A
BRIDGELUX BXRC-65C1001-D-73	173 lm/W	Chip On Board (COB)	20 mm	120	70	1.9 mm	1575 lm	Starboard	26 V	6500 K	Flat	700 mA	25 C	Cool, White	9.9 mm	350 mA	With Connector
BRIDGELUX BXRC-65C10K1-C-74	179 lm/W	Chip On Board (COB)	49.2 mm	120 °	70	1.9 mm	21269 lm	Round	69.4 V	6500 K	Flat	3.42 A		Cool, White	29.2 mm	1.71 A
BRIDGELUX BXRC-65E10K1-D-74		Chip On Board (COB)	49.2 mm	120 °	80	1.9 mm	13581 lm	Round	37.6 V	6500 K	Flat	4.2 A		Cool, White	29.2 mm	2.1 A
