CNB.M06.GLLA

Active

LEMO

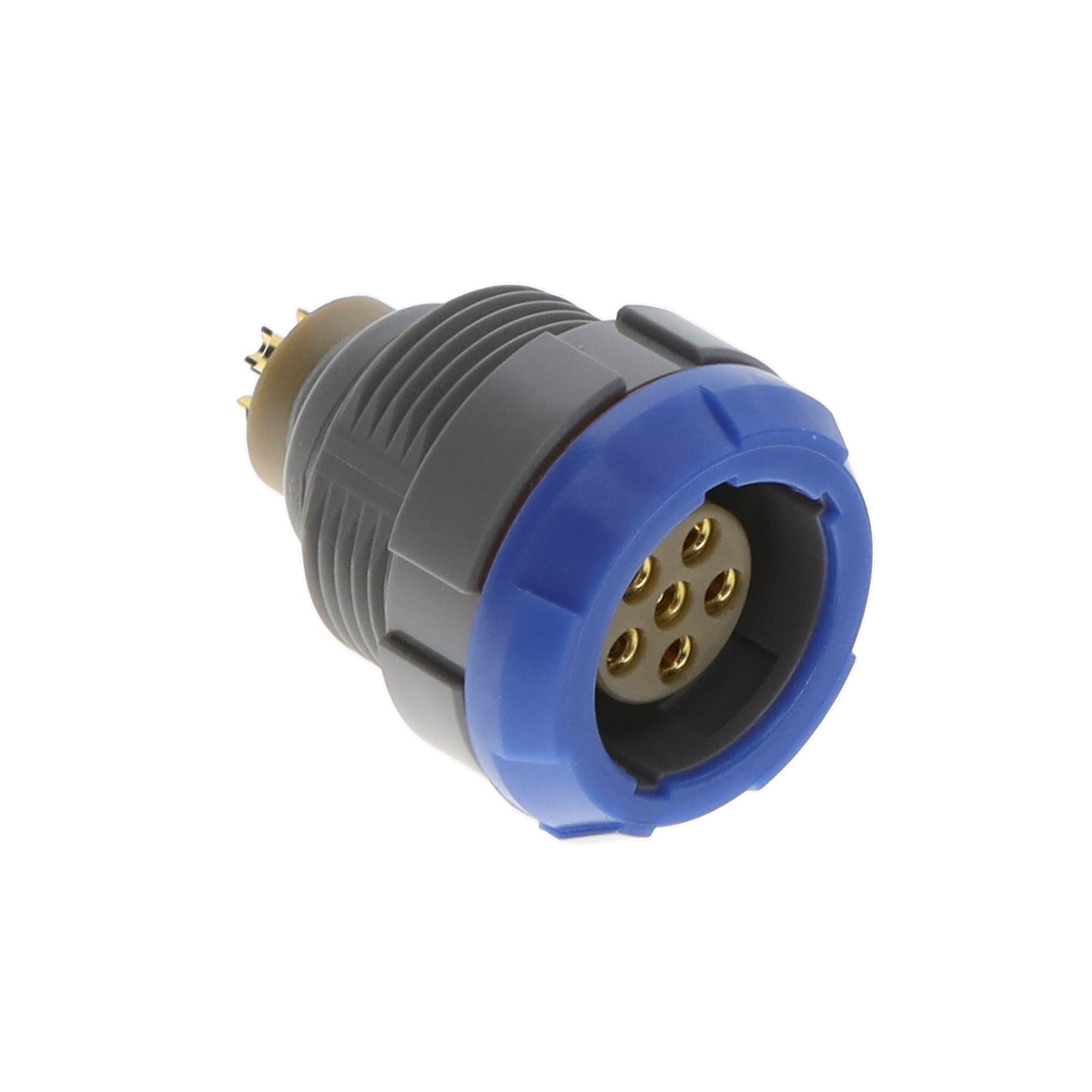

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CNB.M06.GLLA	CNB.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray, Blue	Gray, Blue, Red
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	12 A	10 - 12 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP66	IP66
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Front and Rear Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	6	6 - 8
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M06	M08, M06
Shielding	Unshielded	Unshielded
Termination	-	Solder

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Fastening Type	Connector Type	Orientation	Insert Material	Primary Material	Shell Size - Insert	Mounting Type	Mounting Feature	Shell Material	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Shielding	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination
LEMO CNB.M08.GLNG	Detent Lock, Push-Pull	Receptacle, Female Sockets	B	Polyetheretherketone (PEEK)	Plastic	M08	Panel Mount, Through Hole	Front and Rear Side Nut	Polysulfone (PSU)	8	Gold	10 A	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP66	150 °C	-50 °C	Gray	Solder
LEMO CNB.M06.GLLA	Detent Lock, Push-Pull	Receptacle, Female Sockets	B	Polyetheretherketone (PEEK)	Plastic	M06		Bulkhead - Rear Side Nut	Polysulfone (PSU)	6	Gold	12 A	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP66	150 °C	-50 °C	Blue, Gray
LEMO CNB.M06.GLLR	Detent Lock, Push-Pull	Receptacle, Female Sockets	B	Polyetheretherketone (PEEK)	Plastic	M06		Bulkhead - Rear Side Nut	Polysulfone (PSU)	6	Gold	12 A	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP66	150 °C	-50 °C	Gray, Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
