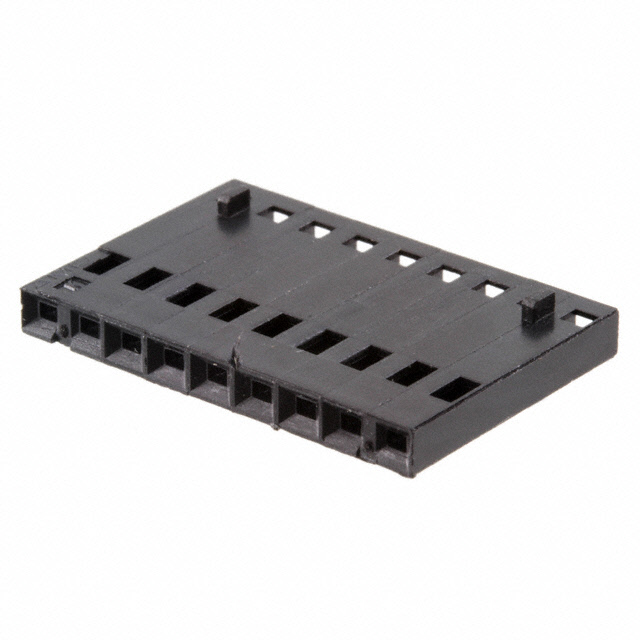

CONN HDR HSG 9POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104503-8
ActiveTE Connectivity AMP Connectors
CONN HDR HSG 9POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104503-8 | 104503 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Header | Header |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 6 - 24 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10000 | $ 0.73 | |
104503 Series
CONN HDR HSG 9POS 2.54MM
| Part | Contact Termination | Note | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Number of Rows | Connector Type | Insulation Material | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104503-8 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 9 | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 2-104503-3 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 24 | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 104503-5 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 6 | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 1-104503-0 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 11 | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 1-104503-2 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 13 | 2.54 mm | 0.1 in |
TE Connectivity AMP Connectors 104503-9 | Crimp | Contacts Not Included | Male Pin | -65 ░C | 105 ░C | Black | Free Hanging (In-Line) | 1 | Header | Thermoplastic | 10 | 2.54 mm | 0.1 in |
Description
General part information
104503 Series
9 Rectangular Connectors - Housings Header Black 0.100" (2.54mm)
