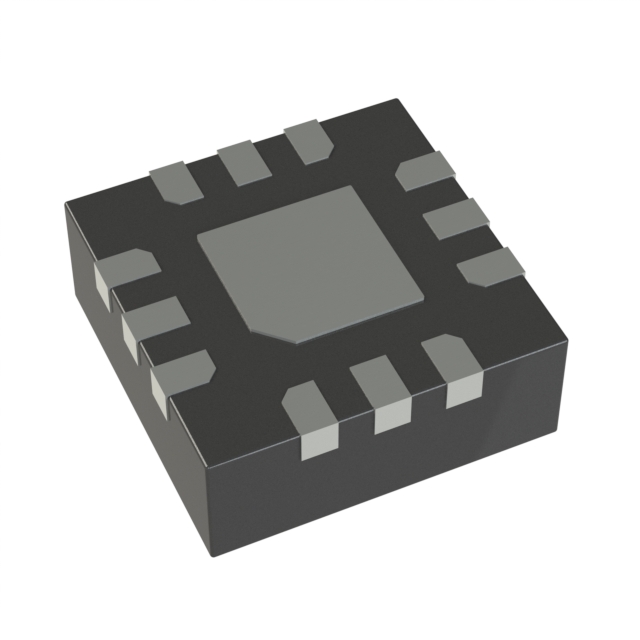

Specification	RT8241DZQW

Clock Sync	No
Control Features	Phase Control, Current Limit, Enable, Power Good
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package / Case	12-WFQFN Exposed Pad
Package Length	2 mm
Package Name	12-WQFN
Package Width	2 mm
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	4.5 V

RT8241 Series

Part	Number of Outputs	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Topology	Output Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Mounting Type	Package Name	Package Width	Package Length	Function	Package / Case	Synchronous Rectifier	Clock Sync	Output Phases	Control Features	Frequency - Switching
Richtek USA Inc. RT8241DZQW	1	Positive	85 °C	-40 °C	Buck	Transistor Driver	5.5 V	4.5 V	Surface Mount	12-WQFN	2 mm	2 mm	Step-Down	12-WFQFN Exposed Pad	Yes	No	1	Current Limit Enable Phase Control Power Good
Richtek USA Inc. RT8241AZQW	1	Positive	85 °C	-40 °C	Buck	Transistor Driver	5.5 V	4.5 V	Surface Mount	12-WQFN	2 mm	2 mm	Step-Down	12-WFQFN Exposed Pad	Yes	No	1	Current Limit Enable Phase Control Power Good	300 kHz
