1454 BK002

Active

ALPHA WIRE

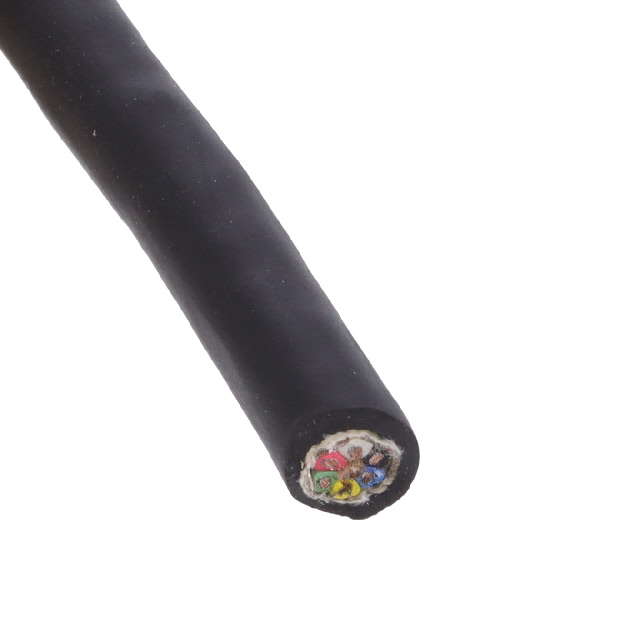

MULTICONDUCTOR CABLE, SHIELDED, 6 CONDUCTOR, 18 AWG, 0.82 MM², 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 6 CONDUCTOR, 18 AWG, 0.82 MM², 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1454 BK002	1454 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	41 strands	41 strands
Conductor Strand [custom]	34 AWG	34 AWG
Jacket (Insulation) Diameter [diameter]	9.96 mm	9.96 mm
Jacket (Insulation) Diameter [diameter]	0.392 "	0.392 "
Jacket (Insulation) Material	Polychloroprene	Polychloroprene
Jacket (Insulation) Thickness	1.143 mm	1.143 mm
Jacket (Insulation) Thickness	0.045 in	0.045 in
Jacket Color	Black	Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	6	6
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	85 %	85 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	18 AWG	18 AWG

MULTICONDUCTOR CABLE, SHIELDED, 6 CONDUCTOR, 18 AWG, 0.82 MM², 500 FT, 152.4 M

Part	Conductor Insulation	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Shield Type	Voltage	Cable Type	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket Color	Shield Material	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE 1454 BK002	Ethylene Propylene Terpolymer Rubber (EPDM)	85 %	9.96 mm	0.392 "	Communication, Control	Braid	600 V	Multi-Conductor	6	41 strands	34 AWG	Copper, Tinned	-20 C	60 °C	Polychloroprene	Black	Copper, Tinned	18 AWG	500 '	152.4 m	1.143 mm	0.045 in
ALPHA WIRE 1454 BK001	Ethylene Propylene Terpolymer Rubber (EPDM)	85 %	9.96 mm	0.392 "	Communication, Control	Braid	600 V	Multi-Conductor	6	41 strands	34 AWG	Copper, Tinned	-20 C	60 °C	Polychloroprene	Black	Copper, Tinned	18 AWG			1.143 mm	0.045 in	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 11548.83
Newark	N/A	1	$ 2607.61

General part information

6 Conductor Multi-Conductor Cable Black 18 AWG Braid 500.0' (152.4m)
